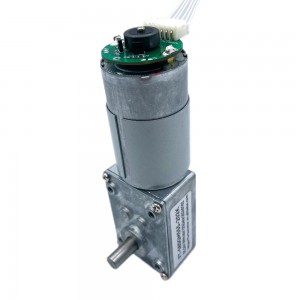

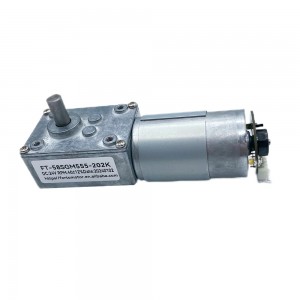

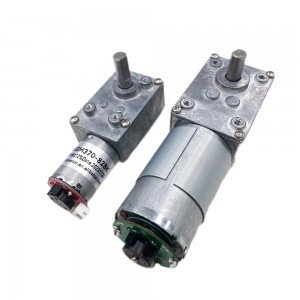

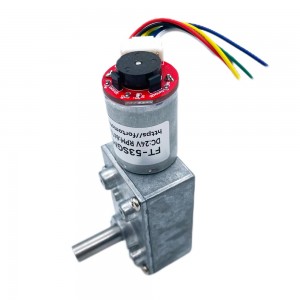

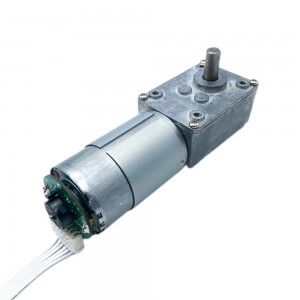

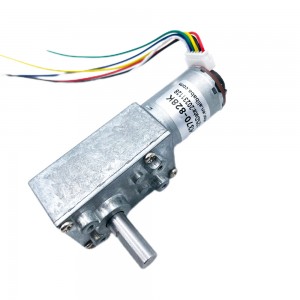

Matoorka burushka yar ee DC dirxiga matoor leh oo leh hoolka hoolka 12PPR

Matoorka burushka yar ee DC dirxiga matoor leh oo leh koodhka hoolka 12PPR Sawirka sifaysan

sharaxaad gaaban:

Voltage, rpm, torque iyo usheeda dhexe ee wax soo saarka

waxaa lagu habeyn karaa iyadoo loo eegayo shuruudaha alaabtaada

Fadlan la xidhiidh injineerka iibka

Qiimaha FOB:US $0.5 - 50 / Qayb

Tirada Dalbashada Min.100 Qaybood/Qeyb

Awooda wax bixinta:2000000Qeyb/Qeyb bishii

shahaado:RoHS/CE/ISO9001/FCC

Jihada wareega:CW/CCW

Qalabka Kiiska Gearbox:Jilitaanka Zinc Die

Dhexroorka shafka:Cabbirka joogtada ah/caadada la aqbali karo

Heerkulka shaqaynaya:-40°c~ +80°c

Voltage:Caadiyan la aqbali karo

Xawaaraha soo-saarka (RPM):Caadiyan la aqbali karo

Nooca baabuurka:La caday/ caday la'aan

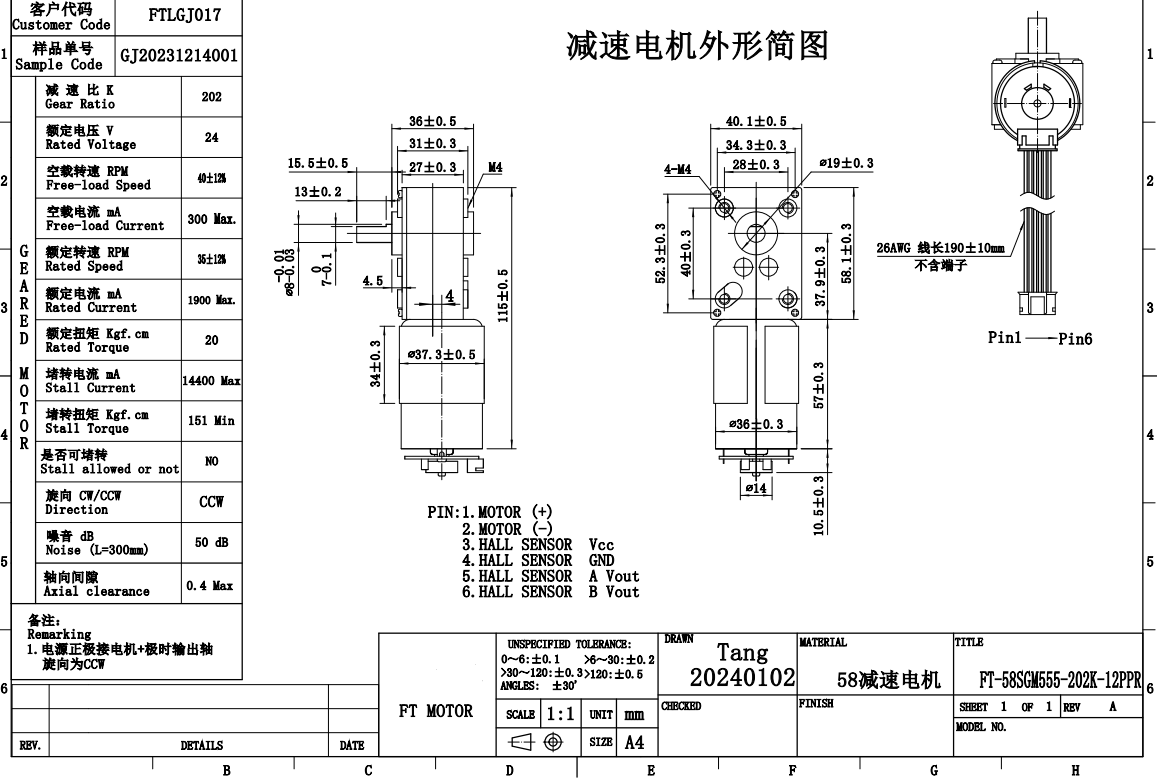

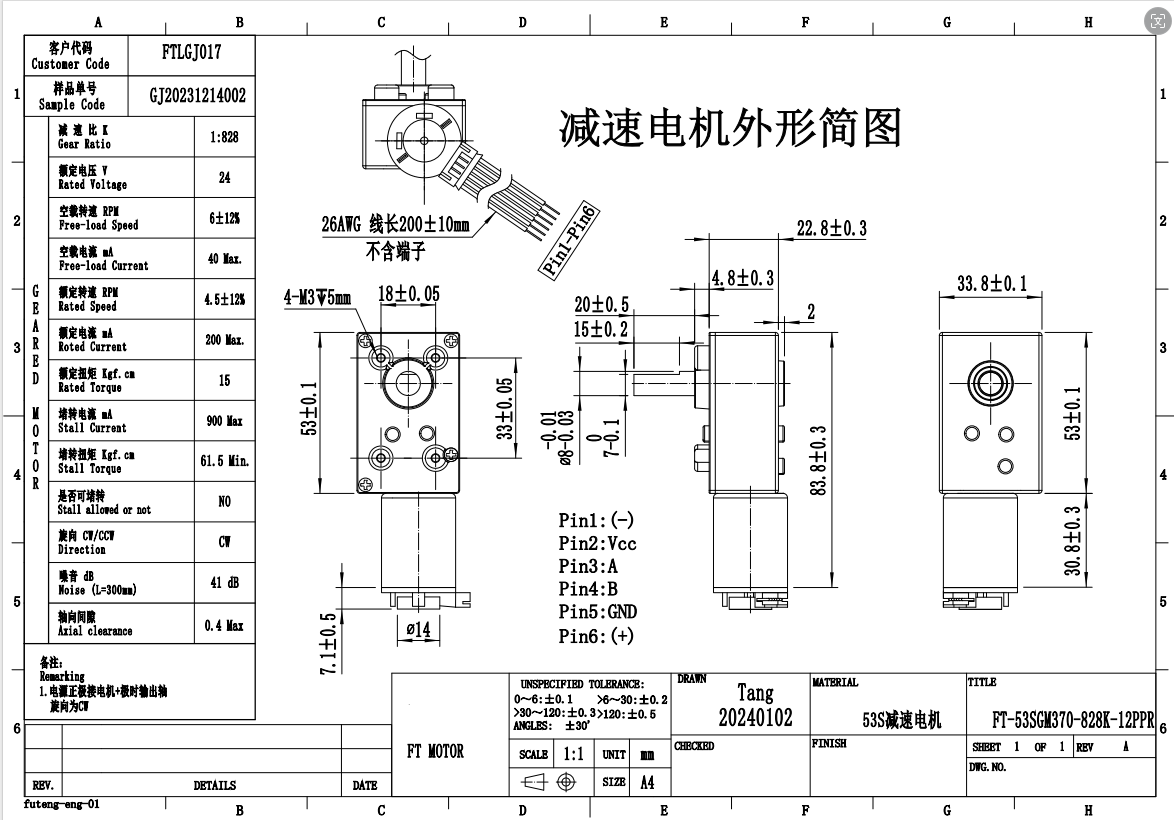

Modelka Gear Motor:FT-58SGM 555 / FT-53SGM370

Dhexroorka Sanduuqa Gear:58mmx40.1mm / 53mmx33.8mmn

Voltage:2-24V

Xawaaraha:2rpm-2000rpm

Torque:Isbeddelka waa la aqbalay

Fiiro gaar ah:Shaft, xawaaraha, danab waa la beddeli karaa

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

Video

Codsiga

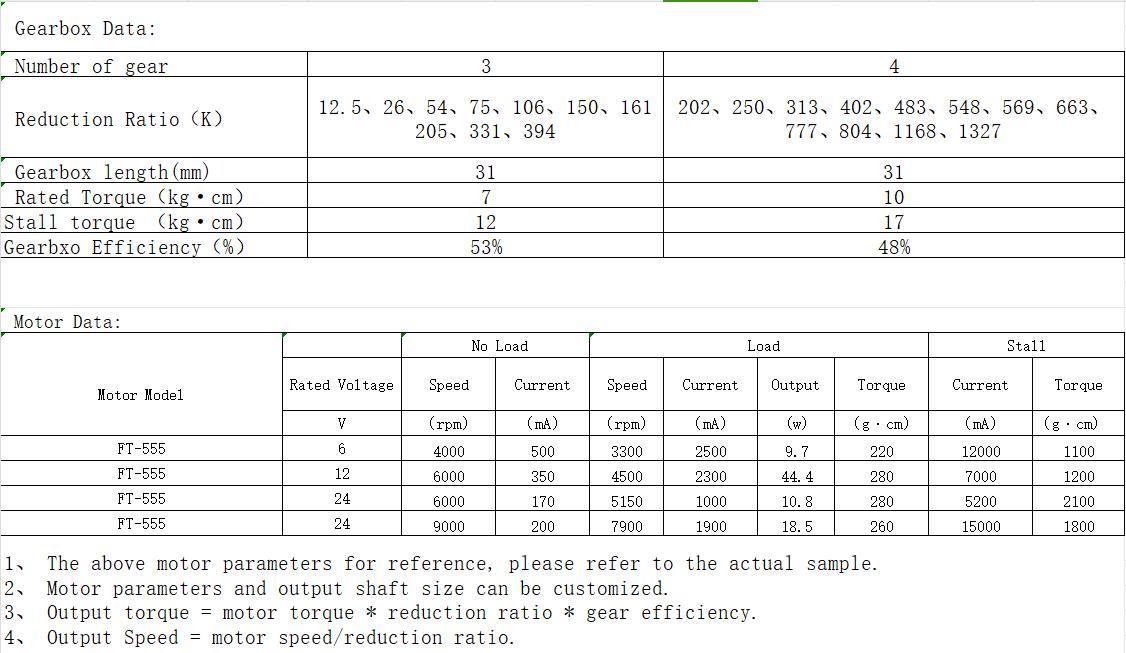

Qaabka	Voltage		Saamiga	Wax Xamuul ah		Xamuulka lagu qiimeeyay				Fadhiid
	Range	Lagu qiimeeyay	Saamiga	Xawaaraha	Hadda	Xawaaraha	Hadda	Torque	Awood	Torque	Hadda
	V		1:00	rpm	mA	rpm	A	Kgf·cm	W	Kgf·cm	A
555-1280	6-12V	DC12V	17	470	300	400	1.6	5	20	17	5
			31	260	300	220	1.6	9	20	31	5
			50	160	300	135	1.6	15	20	50	5
			100	80	300	68	1.6	30	20	70	5
			290	27	300	23	1.6	70	20	70	5
			500	16	300	13.5	1.6	70	20	70	5
555-2480	12-24V	DC24V	17	470	250	400	2	6.8	28	17	7
			31	260	250	220	2	12	28	31	7
			50	160	250	135	2	19	28	50	7
			100	80	250	68	2	60	28	70	7
			290	27	250	23	2	70	28	70	7
			500	16	250	13.5	2	70	28	70	7

Matoorka qalabka gooryaankawaa matoor caadi ah, kaas oo udub dhexaad u ah habka gudbinta oo ka kooban giraangiraha dirxiga iyo dirxiga. Marsha dixirigu waa marsho u qaabaysan qolofka shilka, dirxiguna waa fur ilko helical leh. Xidhiidhka gudbinta ee ka dhexeeya iyaga ayaa ah in la wado dhaqdhaqaaqa giraangiraha dirxiga iyada oo loo marayo wareegtada dirxiga.

Habka qalabka gooryaanka wuxuu leeyahay sifooyinka soo socda:

1. Saamiga dhimista sare:

Habka gudbinta marsha dirxigawuxuu gaari karaa qayb weyn oo dhimis ah, badiyaa saamiga dhimista wuxuu gaari karaa 10:1 ilaa 828:1 iyo wixii la mid ah.

2. Wax soo saarka qulqulka weyn:

Habka gudbinta marsha dixirigu waxa uu soo saari karaa torque weyn sababtoo ah aagga xidhiidhka marsho ee weyn.

3. Saxnaanta sare iyo xasiloonida:

Maadaama habka xidhiidhka marshada ee gudbinta marsha dixirigu uu yahay xidhiidh simbiriirixan leh, habka gudbintu waa mid xasiloon iyada oo aan saamayn iyo xidhnayn.

4. Sifada is-qufulka:

Ilkaha helicalka ah ee dixiriga iyo ilka helical ee giraangiraha dirxiga ayaa ka dhigaya nidaamku inuu yeesho muuqaal is-quful ah, kaas oo ilaalin kara meel gaar ah marka korontada la joojiyo.

Codsiyada caadiga ah
1. Codsiyada guriga: alaabo cad, qalab yar yar, marawaxado, shaashado koronto, daaqado toos ah, robots nadiifinta sagxadda, nadiifiyaha vacuum, nidaamyada guriga smart.
2. Codsiyada caafimaadka: bambooyin caafimaad, sphygmomanometers, qalabka qalliinka, kicinta caafimaadka, centrifuges.
3. Qalabka korontada: bamka hawada, bamka biyaha, bamka vacuum, koronto dhaliyaha oksijiinta, laydhka korantada, kaashawiito koronto.
4. Qalabka ganacsiga: madbacadaha, koobiyeeyayaasha, shredders, projectors, scanners, diiwaanka lacagta caddaanka ah, mashiinada iibka.
5. Daryeelka shakhsi ahaaneed: timo qalajiyaha, korantada xiirta, alaabta quruxda, timaha curliyaha, toosiyaha timaha uumiga (biyo jet timaha toosan).
6. Goobta caafimaadka: duugista, boombalada dadka waaweyn.
7. Goobta amniga: nidaamka ilaalinta, kamarad, badbaado.
8. Codsiyada warshadaha: hubka robotic, qalabka daabacaadda, qalabka iswada.
9. Codsiyada kale: qufulka albaabada elektarooniga ah, furayaasha smart, robots, alaabada carruurtu ku ciyaarto, baabuurta casriga ah, doomaha, xidhashada caqliga leh, elektiroonigga, DIY, iwm.

Ogaysiis
Hello, aad ayaan ugu faraxsanahay inaan arko alaabtayada. Waxaan nahay matoor xirfad lehOEM/ODMsoo saarayaasha, waxayna leeyihiin ku dhawaad 11 sano oo wax soo saar iyo khibrad R&D. Waxaan leenahay warshad noo gaar ah iyo injineerada farsamada. Waxaan joognaa Dongguan, Shiinaha, Haddii aad xiisaynayso matooradayada DC / DC gear motor, waxaa jira baahi kasta oo matoor ah, ku soo dhawaadanala soo xidhiidh, adeegyadayada xirfadeed si aan uga jawaabno su'aalahaaga.
