Hirarka sare ee nolosha dheer ee meeraha burushka aan lahayn dc gear dhimista mashiinka qaxwada ganacsiga

Dhaqdhaqaaqa sare ee cimriga dheer ee meeraha burushka aan lahayn dc gear dhimista mashiinka kafeega ganacsiga ee Sawirka leh

sharaxaad gaaban:

Qiimaha FOB:US $0.5 - 50 / Qayb

Tirada Dalbashada Min.100 Qaybood/Qeyb

Awooda wax bixinta:2000000Qeyb/Qeyb bishii

shahaado:RoHS/CE/ISO9001/FCC

Jihada wareega:CW/CCW

Qalabka Kiiska Gearbox:Jilitaanka Zinc Die

Dhexroorka shafka:Cabbirka joogtada ah/caadada la aqbali karo

Heerkulka shaqaynaya:-40°c~ +80°c

Voltage:Caadiyan la aqbali karo

Xawaaraha soo-saarka (RPM):Caadiyan la aqbali karo

Nooca baabuurka:La caday/ caday la'aan

Modelka Gear Motor:FT-36PGMBL3650

Dhexroorka Sanduuqa Gear:Ø36mm

Voltage:2-24V

Xawaaraha:2rpm-2000rpm

Dc Gear Motor Si Balaadhan Loogu Isticmaalay:Robotyada, Qufulyada elektarooniga ah, Qufulyada baaskiilada dadweynaha, Relays, qoryaha koollada korontada, qalabka guriga, Qalimaanta daabacaadda 3D, burushka cadayga ee korontada, qalabka xafiisyada, daryeelka caafimaadka duugista, qalabka qurxinta iyo jimicsiga, qalabka caafimaadka, alaabta carruurtu ku ciyaarto, waxyaalaha maalinlaha ah ee koronto, curling birta, baabuurta goobaha si toos ah.

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

muuqaal

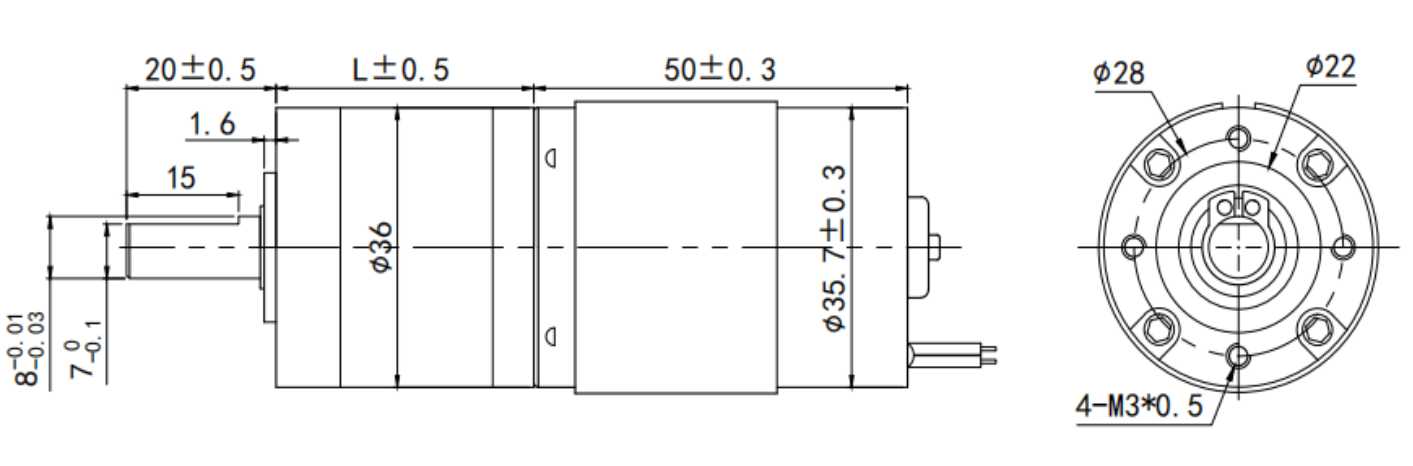

Cabirka (MM)

Gearbox Data

Tirada qalabka	1	2	3	4
Saamiga dhimista (K)	3.7,5.2	14, 16, 19, 22,27	51,59,71,82 100,115,139	189, 218, 264, 304, 369 427,516,596,721
Dhererka sanduuqa gear (mm)	25.3	31.3	37.5	43.7
Torque la qiimeeyay (kg·cm)	1	3.5	13	30
Hirarka joogsiga (kg·cm)	4	18	45	70
Waxtarka Gearbxo (%)	83%	72%	65%	53%

Xogta Mootooyinka

Moodeelka Mootada		Wax Xamuul ah		raran				Fadhiid

	Voltage lagu qiimeeyay	Xawaaraha	Hadda	Xawaaraha	Hadda	Wax soo saarka	Torque	Hadda	Torque
	V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-3650	12	5000	300	4200	1400	10.2	230	6700	1400
FT-3650	12	8000	350	6400	1660kii	10.5	240	6800	1450
FT-3650	24	5000	150	4200	850	10.8	230	3360	1420
FT-3650	24	9000	190	7200	1000	12	430	4200	1630

1. Halbeegyada gawaarida ee kor ku xusan ee tixraaca, fadlan tixraac muunadda dhabta ah.
2, xuduudaha Motor iyo wax soo saarka size usheeda dhexe la beddeli karaa.
3. Qulqulka wax soo saarka = matoorka matoorka * saamiga dhimista * hufnaanta qalabka.
4. Xawaaraha wax soo saarka = xawaaraha mootada / saamiga dhimista.
