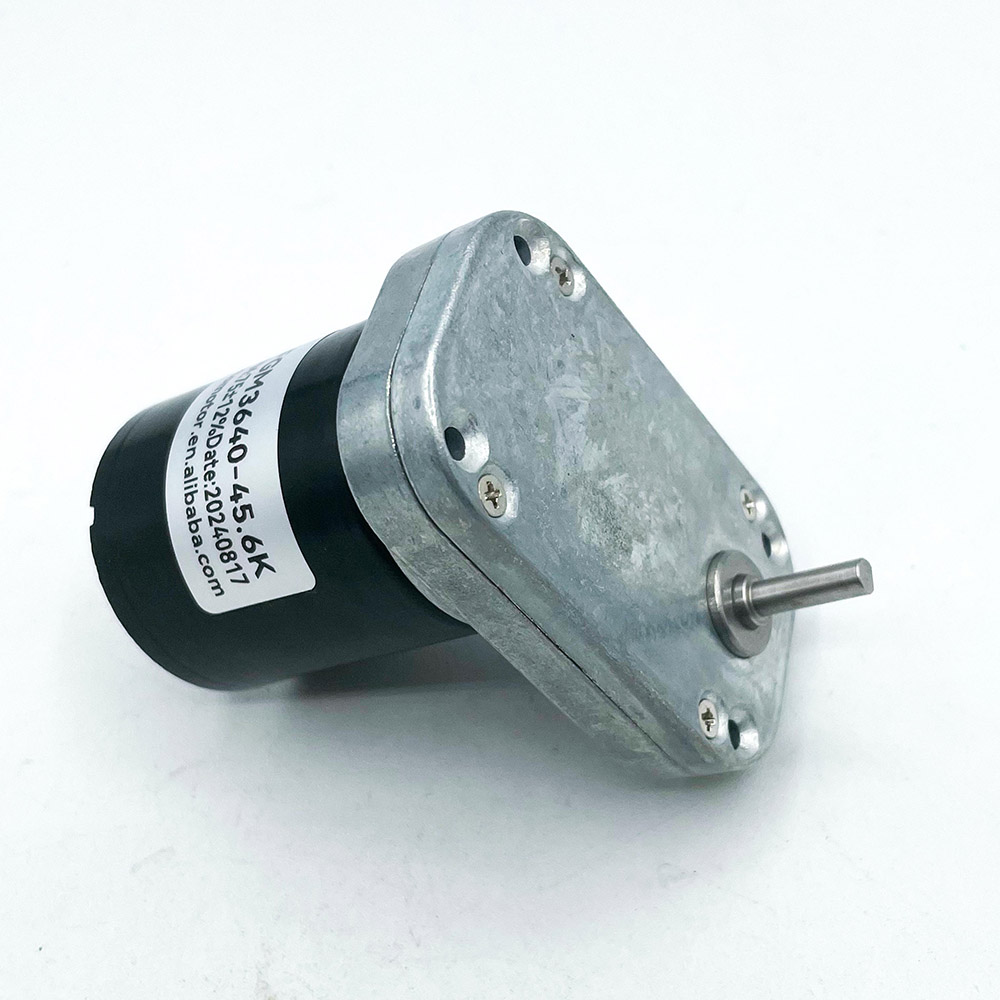

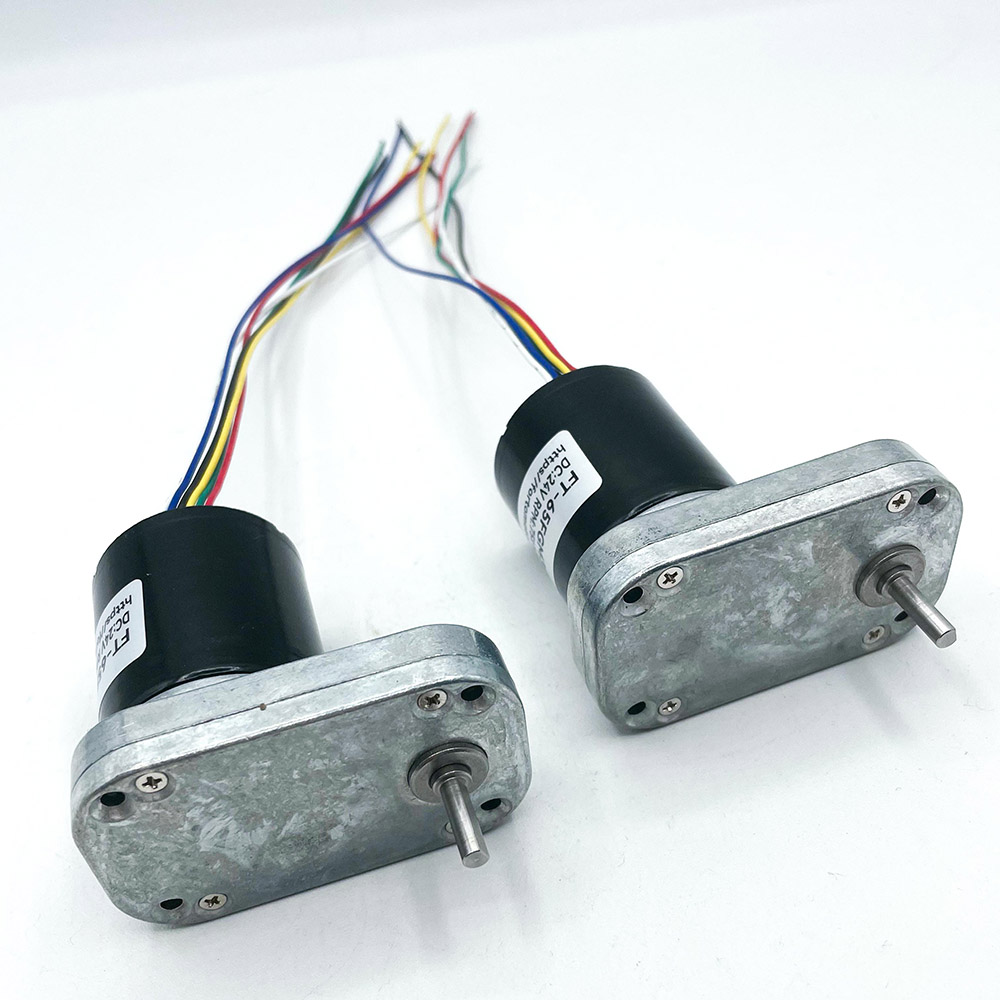

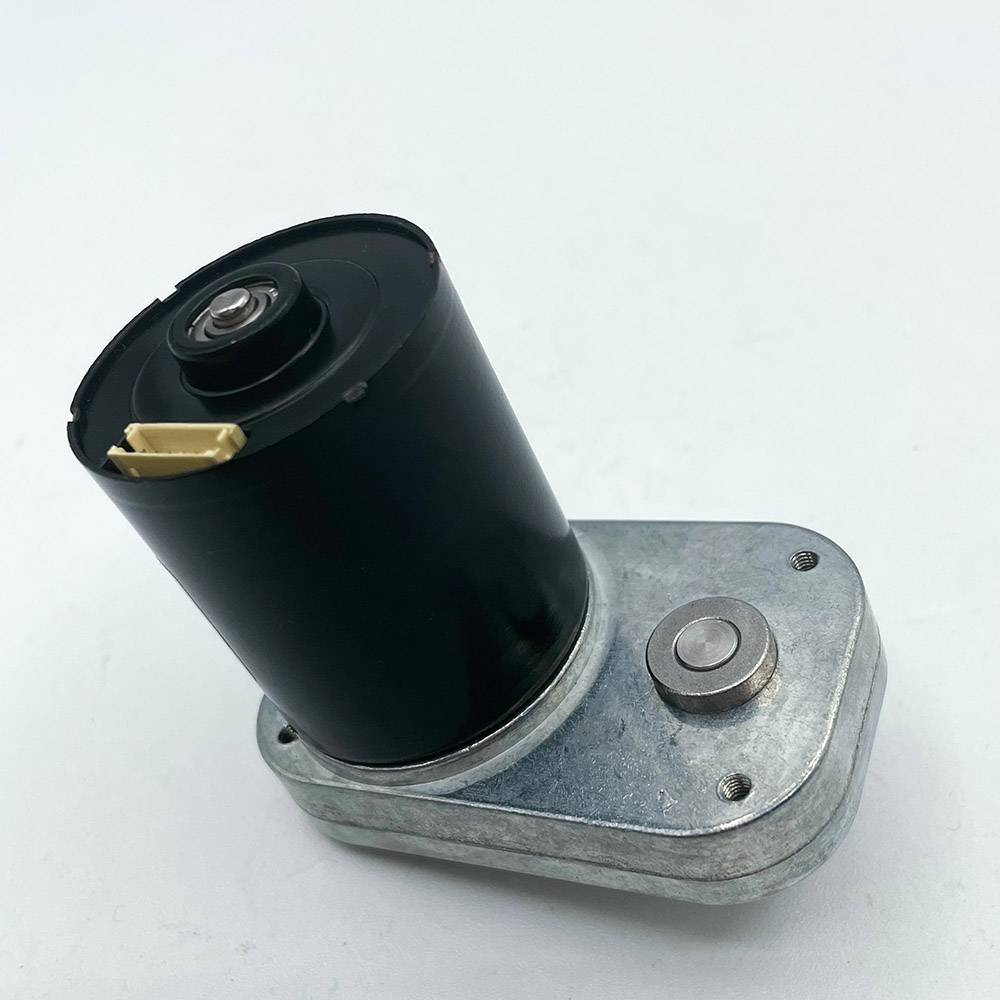

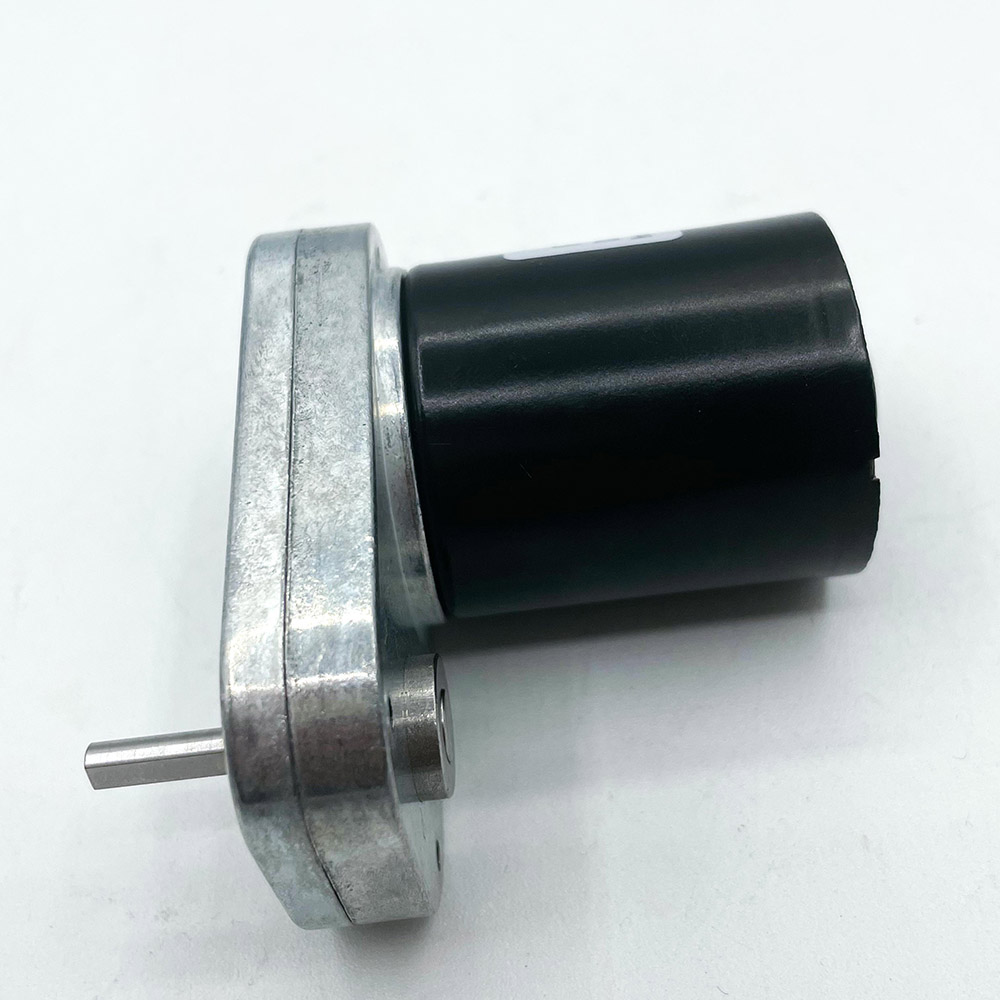

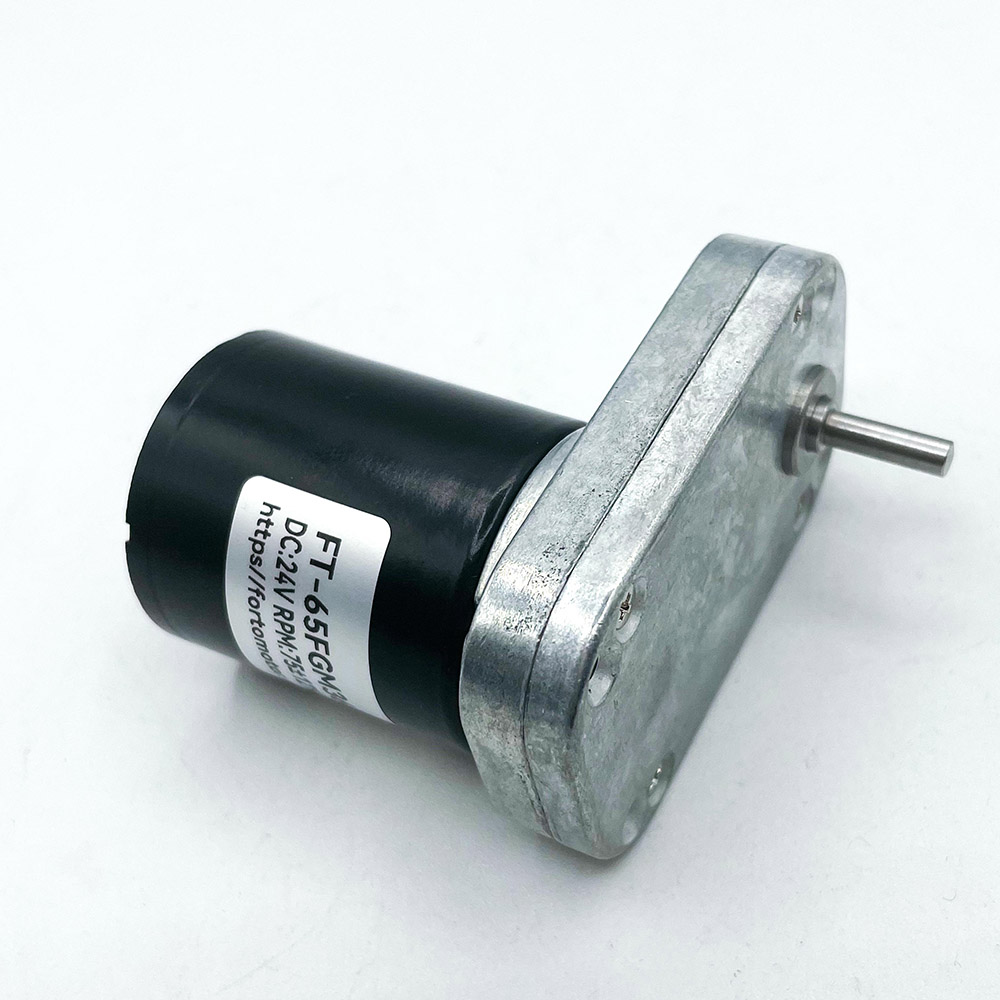

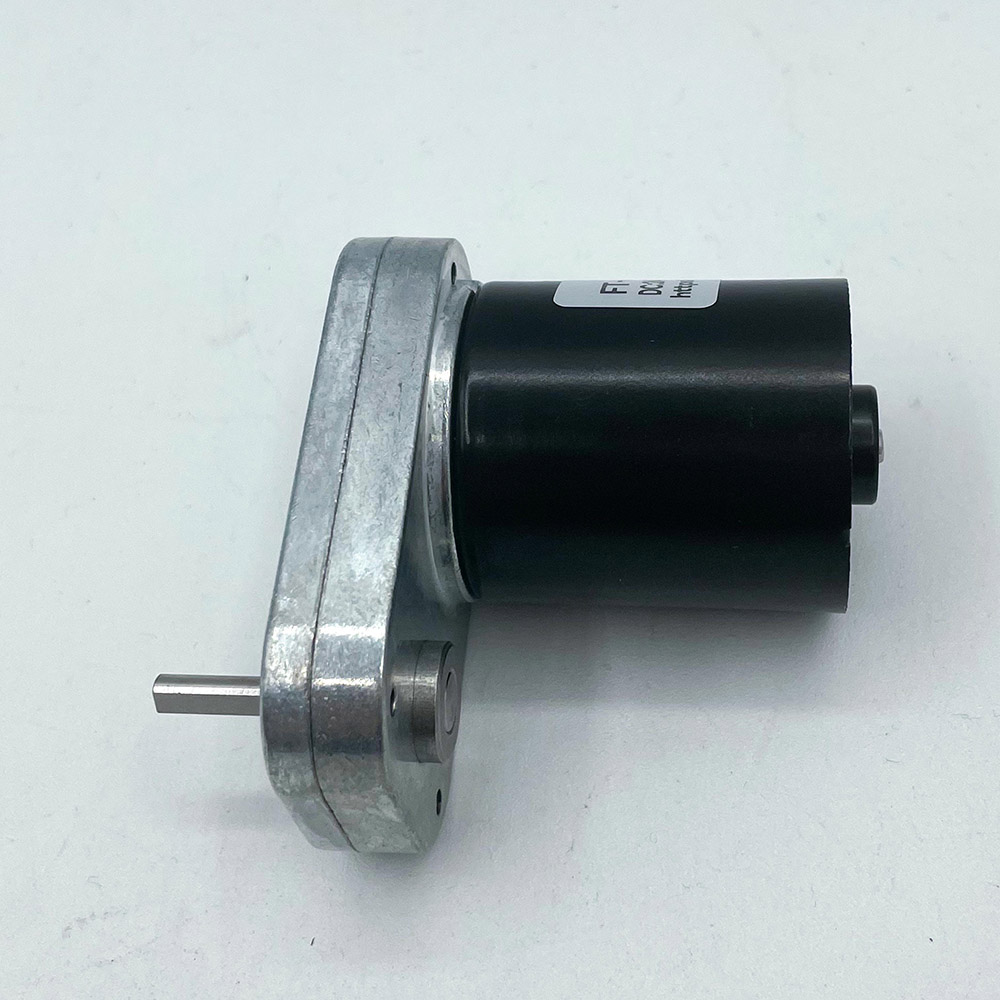

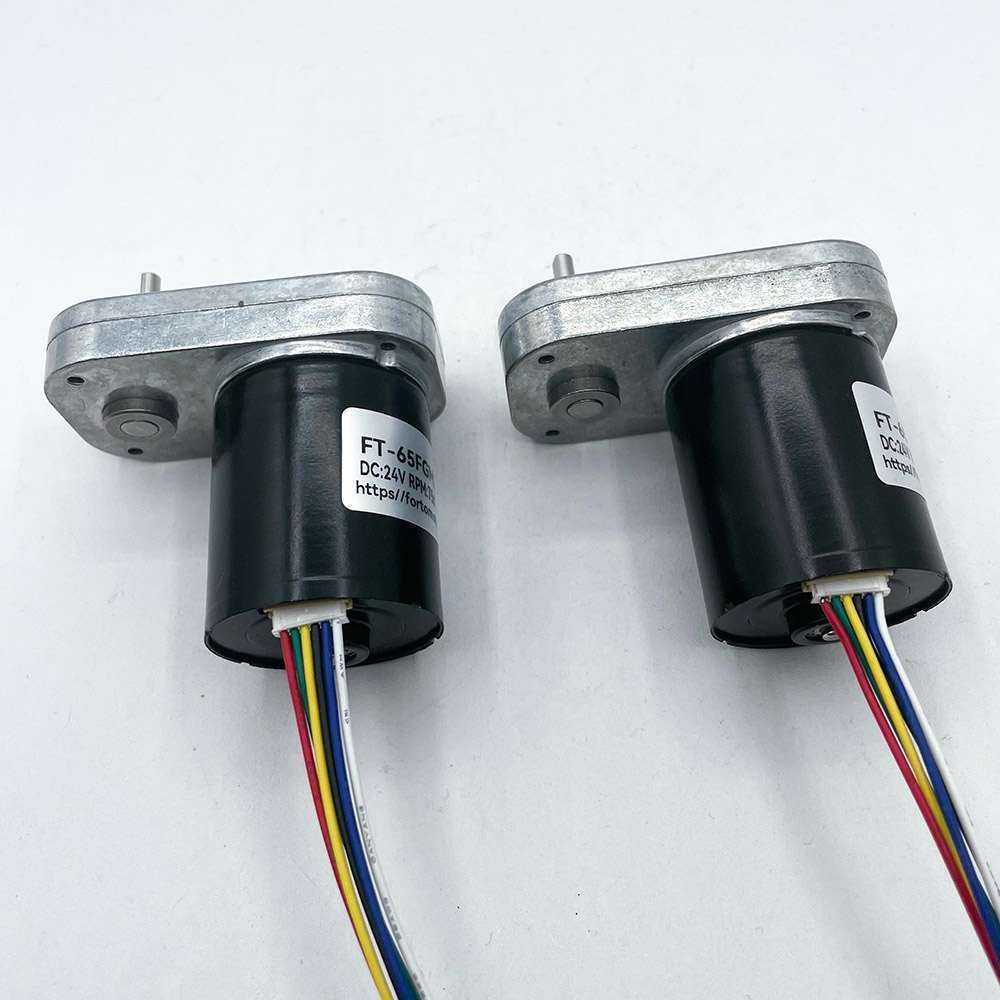

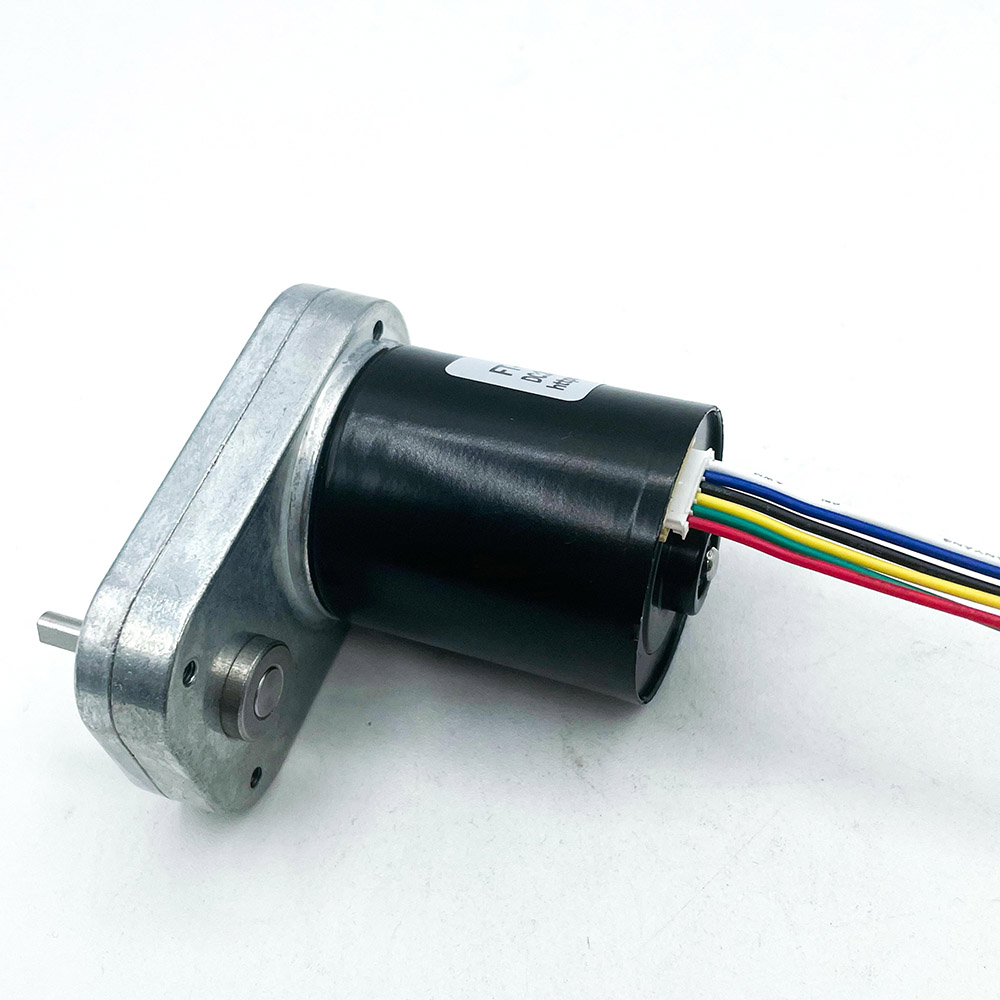

FT-65FGM3640 mooto aan burush lahayn Mirco dc gear matoorada BLDC matoorka bamka yar

sharaxaad gaaban:

Robotyada, Qufulyada elektarooniga ah, Qufulyada baaskiilada dadweynaha, Relays, qoryaha koollada korontada, qalabka guriga, Qalimaanta daabacaadda 3D, burushka cadayga ee korontada, qalabka xafiisyada, daryeelka caafimaadka duugista, qalabka qurxinta iyo jimicsiga, qalabka caafimaadka, alaabta carruurtu ku ciyaarto, waxyaalaha maalinlaha ah ee koronto, curling birta, baabuurta qalabka tooska ah qalabka, robots iyo meelo kale oo badan.

Modelka Gear Motor:FT-65FGM3640 matoor aan burush lahayn

Cabbirka Sanduuqa Gear:65×38mm

Voltage:2-24V

Xawaaraha:5rpm-2000rpm

Torque:Isbeddelka waa la aqbalay

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

Cabirka (MM)

Xogta Gearbox:

Tirada qalabka	3	4	5
Saamiga dhimista (K)	15.4,28.2,41.8,45.6 67.5	135,152,225	450
Dhererka sanduuqa gear (mm)	12	12	12
Torque la qiimeeyay (kg·cm)	2	6	8
Hirarka joogsiga (kg·cm)	6	18	24
Waxtarka Gearbxo (%)	73%	65%	59%

Xogta Baabuurka:

Moodeelka Mootada		Wax Xamuul ah		raran				Fadhiid
	Voltage lagu qiimeeyay	Xawaaraha	Hadda	Xawaaraha	Hadda	Wax soo saarka	Torque	Hadda	Torque
	V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-3540	12	4500	50	3600	420	3.6	100	1800	430
FT-3540	12	6000	70	5100	350	4.2	50	2500	500
FT-3540	24	6000	55	5500	250	6	20	1280	480
FT-3540	24	7000	60	5100	490	11.76	110	2300	500
