FT-42PGM42ZY Saxnaanta sare iyo waxtarka sare ee qalabka meeraha matoorka birta birta ah

FT-42PGM42ZY Saxnaanta sare iyo waxtarka sare ee meeraha gear matoorka birta matoorka leh Sawirka

sharaxaad gaaban:

Qiimaha FOB:US $0.5 - 50 / Qayb

Tirada Dalbashada Min.100 Qaybood/Qeyb

Awood-siinta:2000000Qeyb/Qeyb bishii

shahaado:RoHS/CE/ISO9001/FCC

Jihada wareega:CW/CCW

Qalabka Kiiska Gearbox:Jilitaanka Zinc Die

Dhexroorka shafka:Cabbirka joogtada ah/caadada la aqbali karo

Heerkulka shaqaynaya:-40°c~ +80°c

Voltage:Caadiyan la aqbali karo

Xawaaraha soo-saarka (RPM):Caadiyan la aqbali karo

Nooca baabuurka:La caday/ caday la'aan

Modelka Gear Motor:FT-42PGM775

Dhexroorka Sanduuqa Gear:Ø42mm

Voltage:2-24V

Xawaaraha:2rpm-2000rpm

Dc Gear Motor Si Balaadhan Loogu Isticmaalay:Robotyada, Qufulyada elektarooniga ah, Qufulyada baaskiilada dadweynaha, Relays, qoryaha koollada korontada, qalabka guriga, qalimaan daabacaadda 3D, burushka cadayga korontada, qalabka xafiisyada, daryeelka caafimaadka duugista, qalabka bilicda iyo jimicsiga, qalabka caafimaadka, alaabta carruurtu ku ciyaarto, waxyaalaha maalinlaha ah ee koronto, curling birta, baabuurta goobaha si toos ah.

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

muuqaal

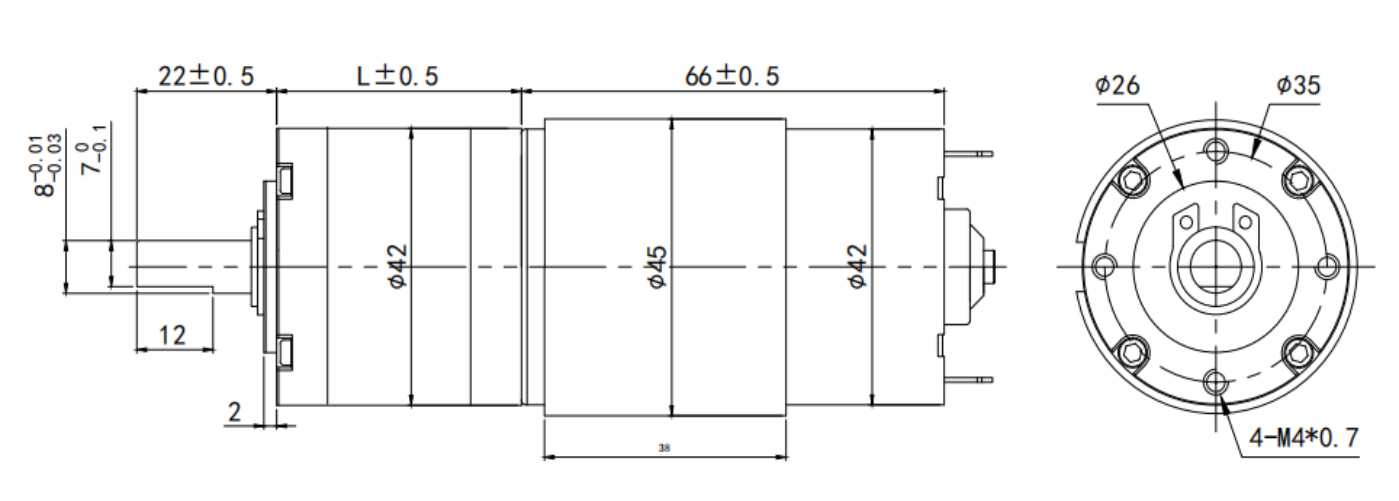

Cabirka (MM)

Gearbox Data

Tirada qalabka	1	2	3	4
Saamiga dhimista (K)	3.7,5.2	14,19,27	51,71,99,139	187, 262, 367, 514, 720
Dhererka sanduuqa gear (mm)	34	44.5	55.5	66.5
Torque la qiimeeyay (kg·cm)	1.2	6	20	40
Hirarka joogsiga (kg·cm)	7	12	40	60
Waxtarka Gearbxo (%)	85%	73%	65%	52%

Xogta Baabuurta

Moodeelka Mootada		Wax rar ah malaha		raran				Fadhiid

	Voltage lagu qiimeeyay	Xawaaraha	Hadda	Xawaaraha	Hadda	Wax soo saarka	Torque	Hadda	Torque
	V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-775	12	3000	220	2200	1000	7.7	350	3500	1180
FT-775	12	6000	900	4500	4000	34.5	750	13000	2700
FT-775	24	3000	110	2200	500	7.7	350	1800	1180
FT-775	24	6000	450	4500	2000	34.5	750	7000	2700

1. Halbeegyada gawaarida ee kor ku xusan ee tixraaca, fadlan tixraac muunadda dhabta ah.
2, Xuduudaha Motor iyo wax soo saarka size usheeda dhexe la beddeli karaa.
3 、 Output torque = matoor wareeg ah * saamiga dhimista * hufnaanta marsho.
4. Xawaaraha wax soo saarka = xawaaraha mootada / saamiga dhimista.

Matoorka qalabka meeraha
