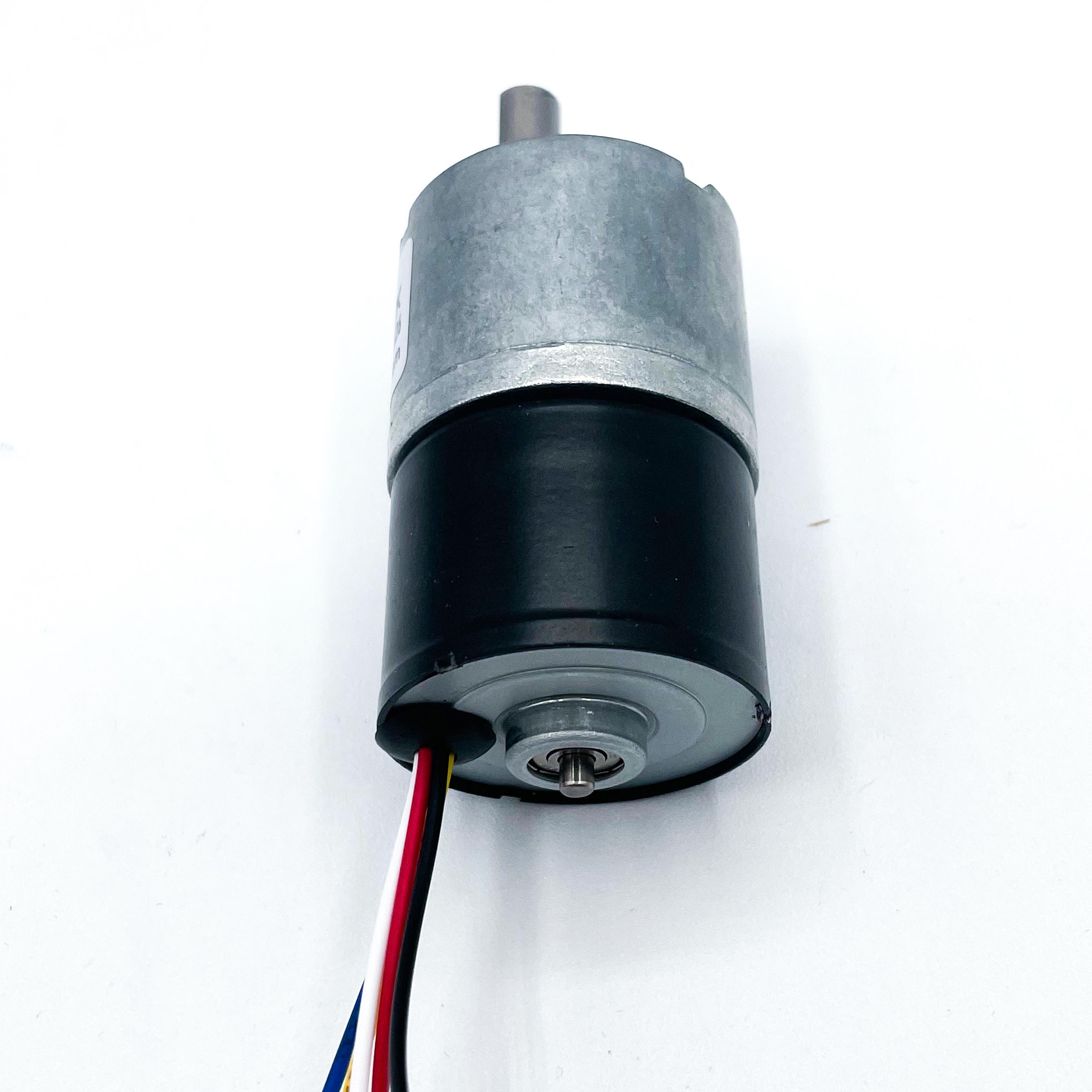

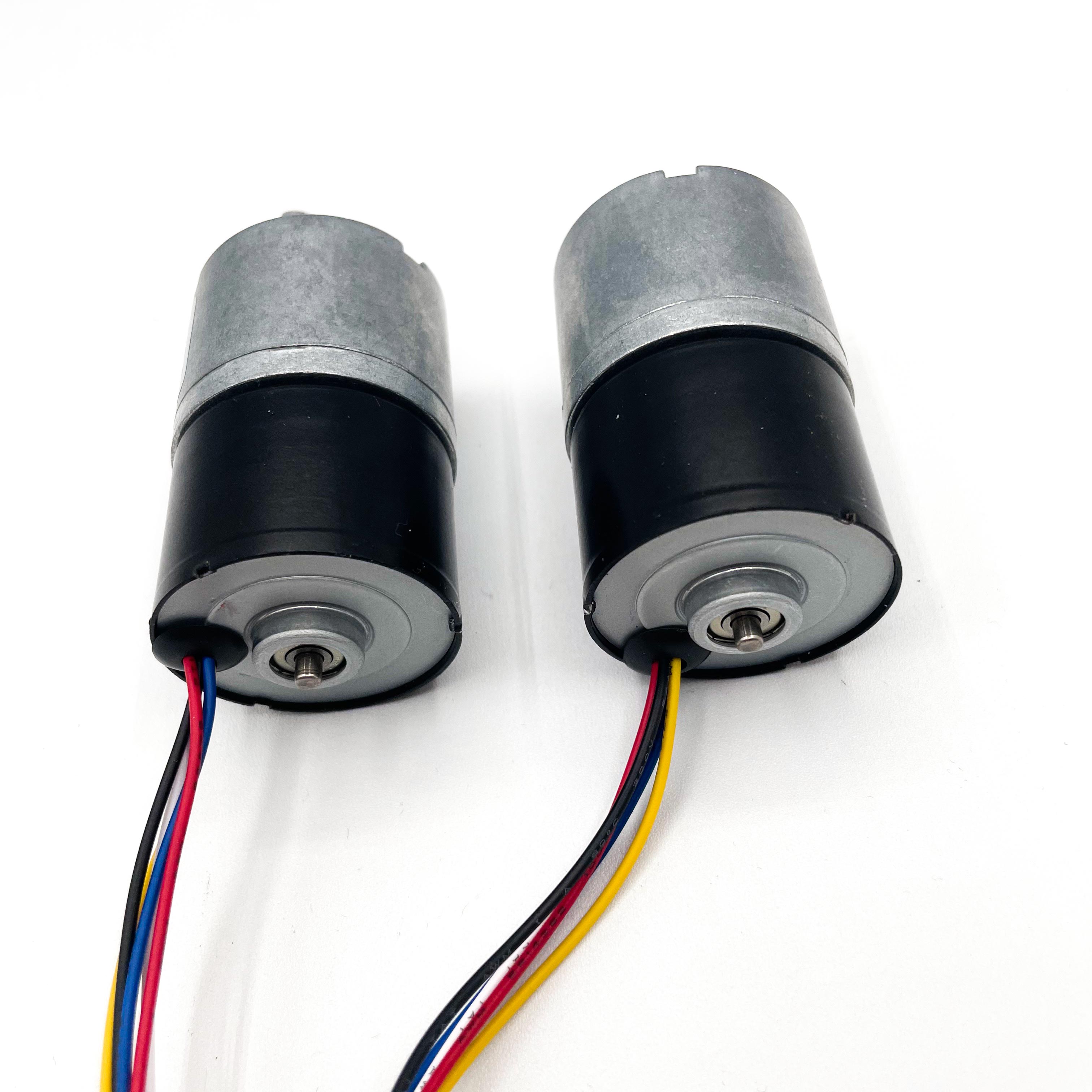

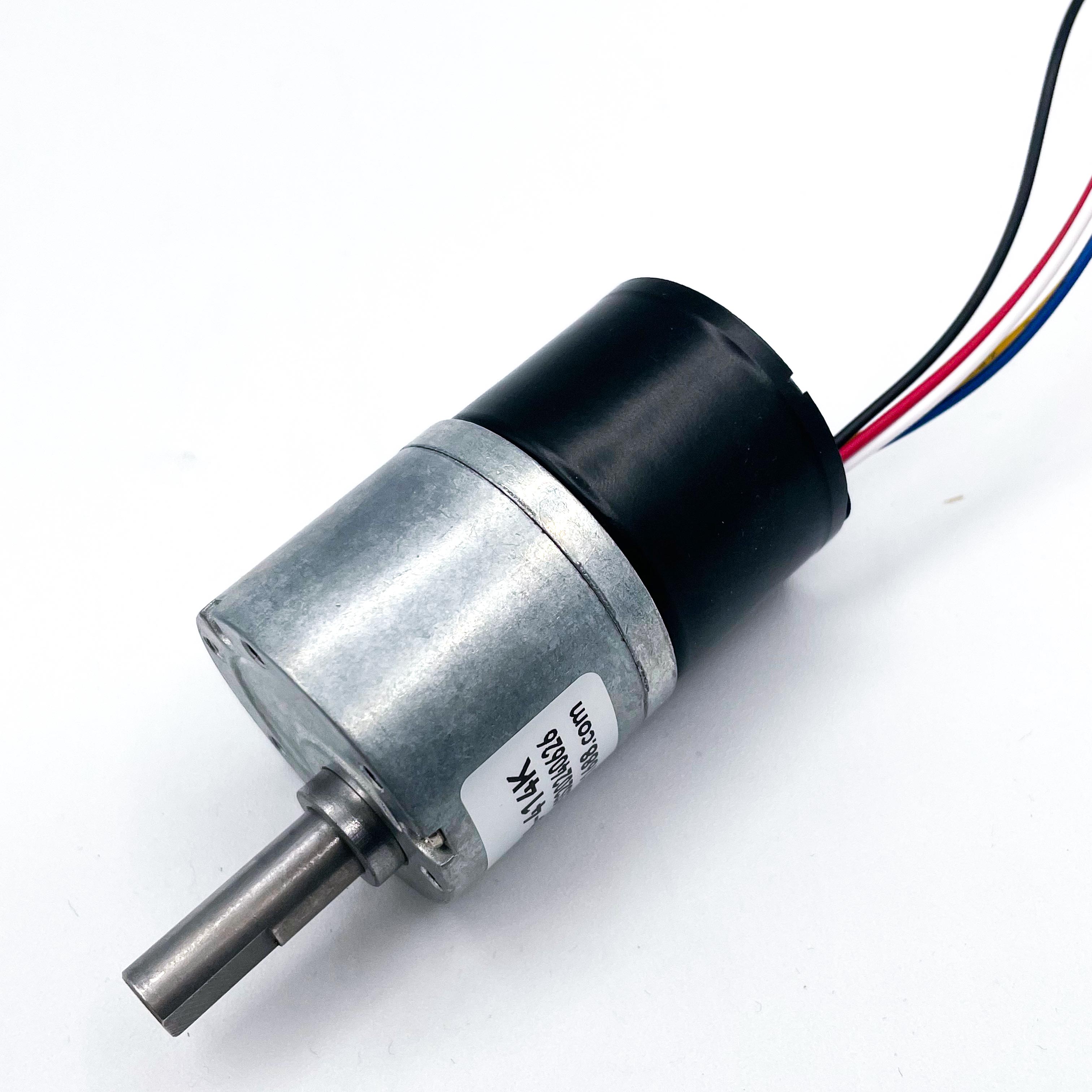

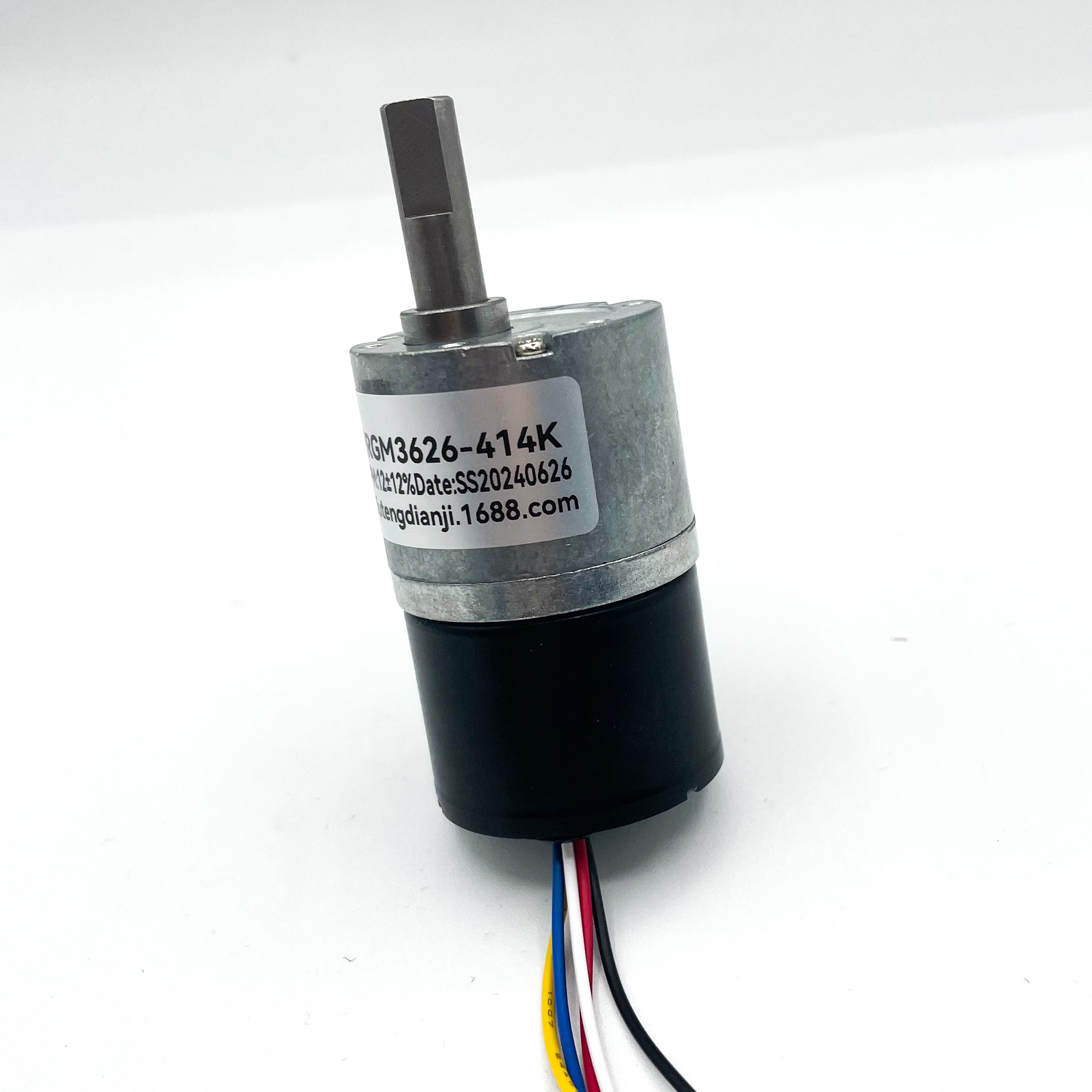

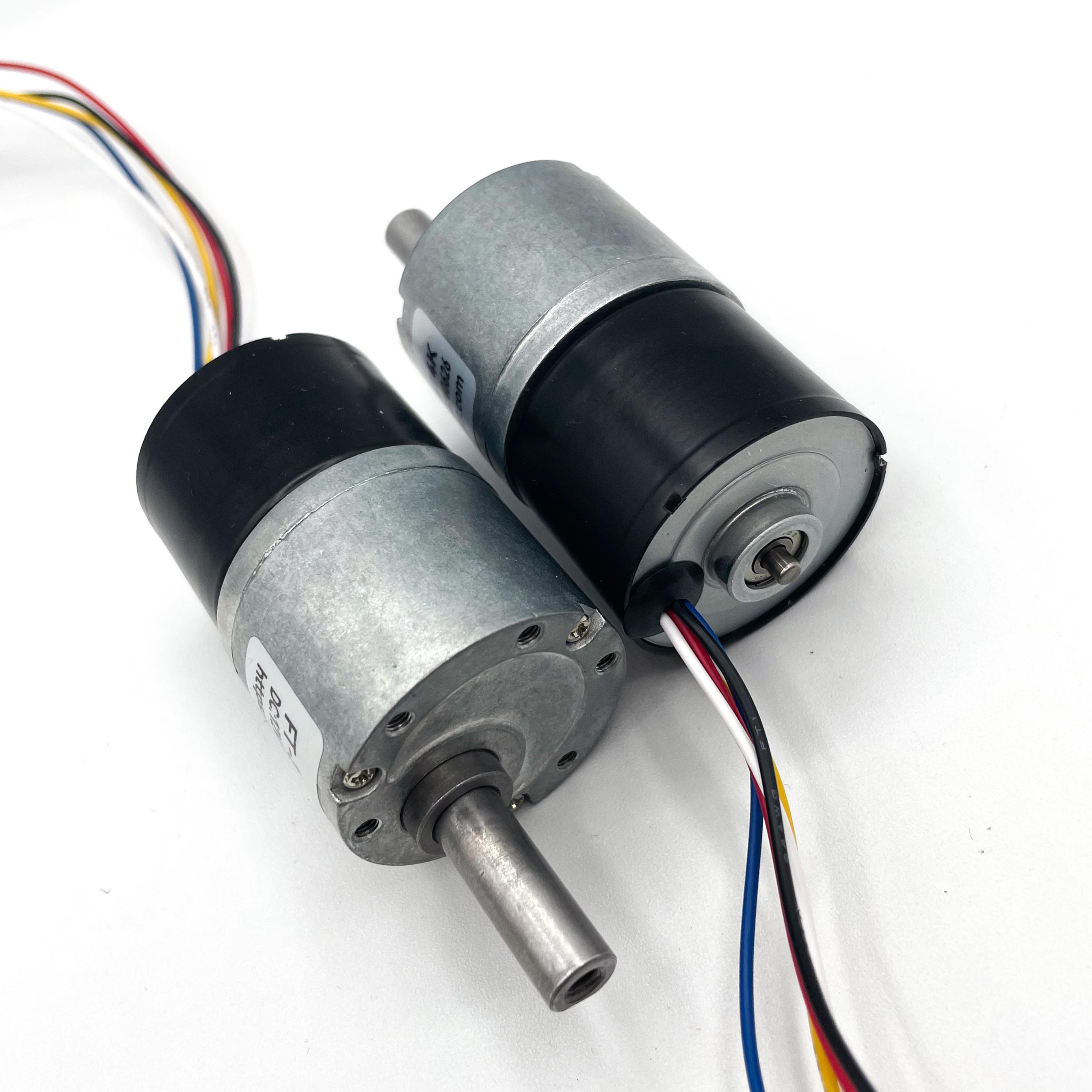

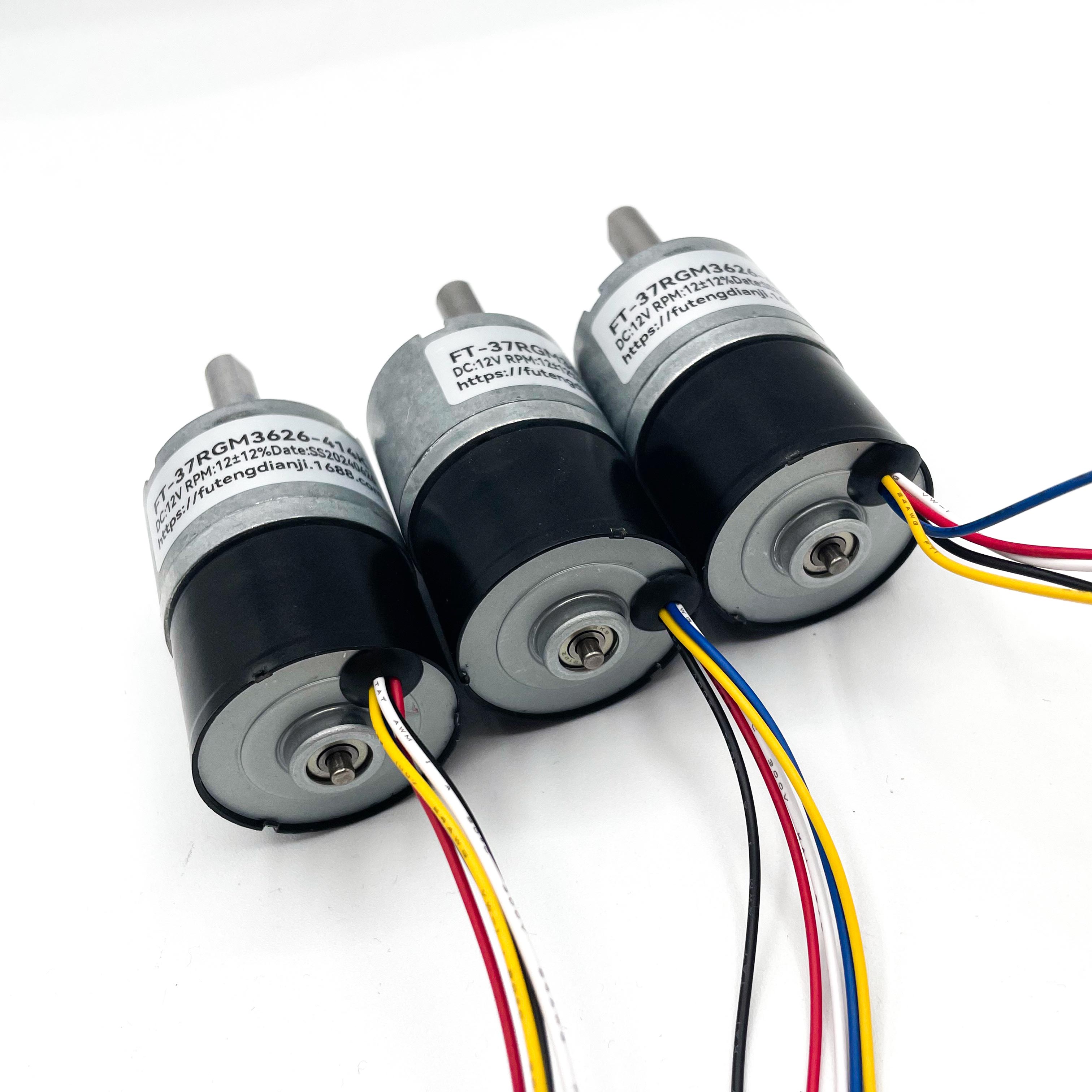

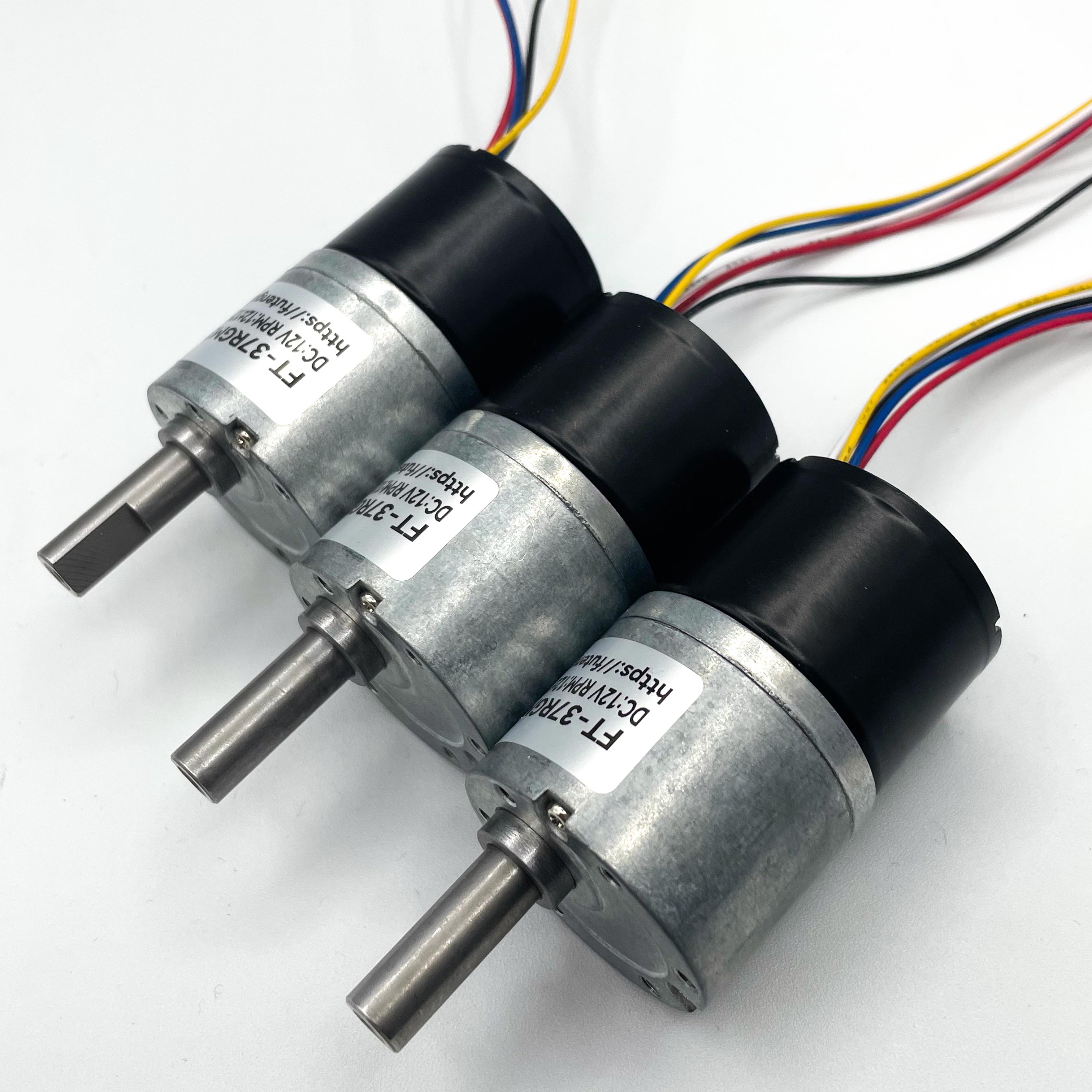

FT-37RGM3626 PMDC 37mm Spur gear motor 3626 BLDC motor

FT-37RGM3626 PMDC 37mm Spur gear motor 3626 BLDC matoor muuqaal leh

sharaxaad gaaban:

Dc Gear Motor Si Balaadhan Loogu Isticmaalay:
Robotyada, Qufulyada elektarooniga ah, Qufulyada baaskiilada dadweynaha, Relays, qoryaha koollada korontada, qalabka guriga, Qalimaanta daabacaadda 3D, burushka cadayga ee korontada, qalabka xafiisyada, daryeelka caafimaadka duugista, qalabka qurxinta iyo jimicsiga, qalabka caafimaadka, alaabta carruurtu ku ciyaarto, waxyaalaha maalinlaha ah ee koronto, curling birta, baabuurta qalabka tooska ah qalabka, robots iyo meelo kale oo badan.

Modelka Gear Motor:FT-37RGM3626 matoor aan burush lahayn

Dhexroorka Sanduuqa Gear:Ø37mm

Voltage:2-24V

Xawaaraha:3rpm-2500rpm

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

Cabirka (MM)

Xogta Gearbox:

Tirada qalabka	2	3	4	5	6	7
Saamiga dhimista (K)	6.8, 10	20,30	40,46,61,90 100	103, 115, 138, 160, 184, 270, 300	310,414,552,614 641,810,900	932, 1243, 1657 2430,2700
Dhererka sanduuqa gear (mm)	19	22.5	25	27.5	30	32.5
Torque la qiimeeyay (kg·cm)	1	2	5	6	8	10
Hirarka joogsiga (kg·cm)	3	6	15	18	24	30
Waxtarka Gearbxo (%)	81%	73%	65%	59%	53%	48%

Xogta Baabuurka:

Moodeelka Mootada		Wax Xamuul ah		raran				Fadhiid
	Voltage lagu qiimeeyay	Xawaaraha	Hadda	Xawaaraha	Hadda	Wax soo saarka	Torque	Hadda	Torque
	V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-555	6	4000	500	3300	2500	9.7	220	12000	1100
FT-555	12	6000	350	4500	2300	44.4	280	7000	1200
FT-555	24	6000	170	5150	1000	10.8	280	5200	2100
FT-555	24	9000	200	7900	1900	18.5	260	15000	1800
