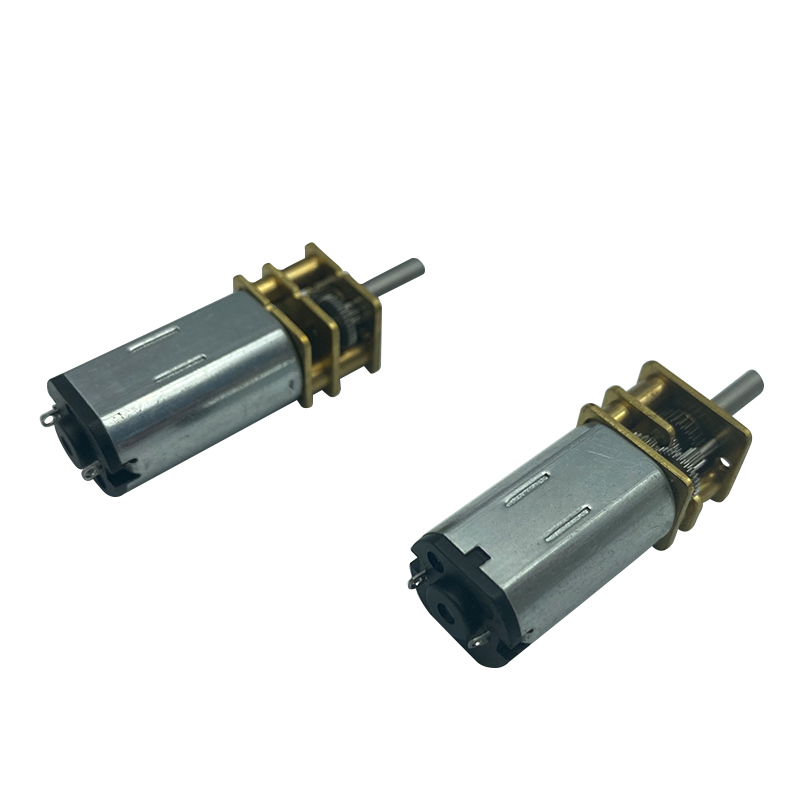

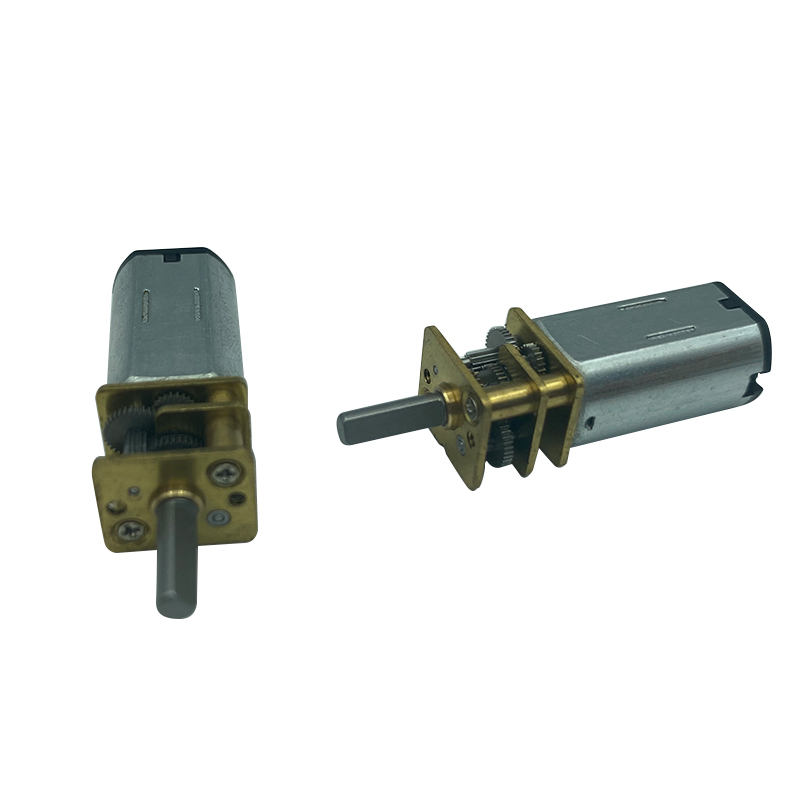

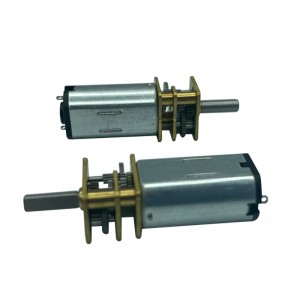

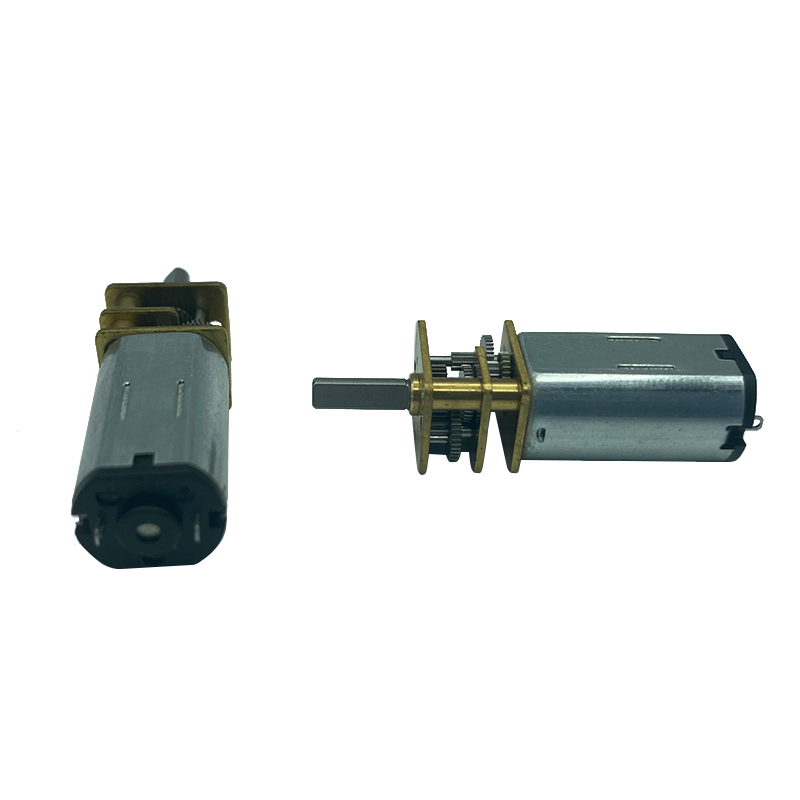

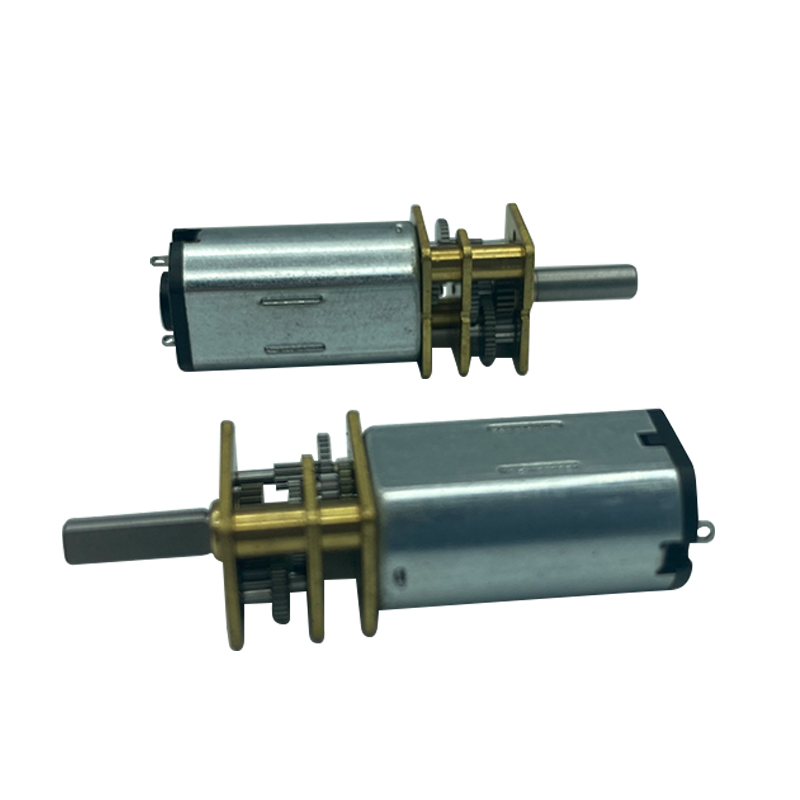

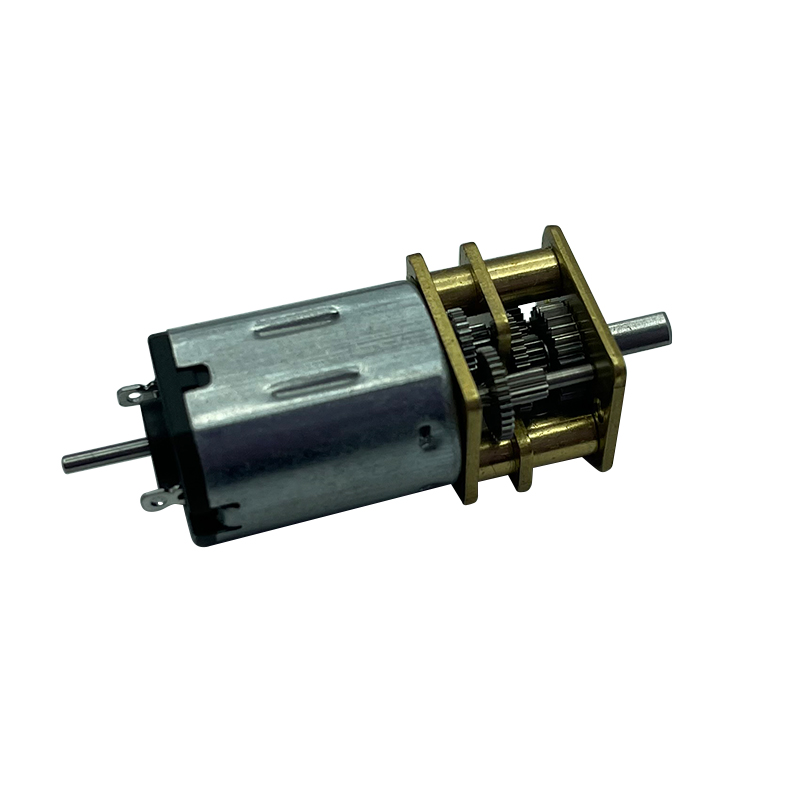

FT-12FGMN30 matoor fidsan

sharaxaad gaaban:

Matoorada siman ee DC Gear waxay leeyihiin faa'iidooyinka naqshadaynta is haysta, wax soo saarka qulqulka sare, hufnaanta sare, xakamaynta dhaqdhaqaaqa saxda ah, iyo adkeysiga. Tani waxay ka dhigaysaa inay ku habboon yihiin xallinta codsiyada u baahan qulqulka sare iyo xakamaynta saxda ah.

Modelka Gear Motor:FT-12FGMN30

Dhexroorka Sanduuqa Gear:12mm

Voltage:2 ~ 24V

Xawaaraha:2rpm ~ 2000rpm

Torque:Isbeddelka waa la aqbalay

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

Astaamaha:

Cabbirka (cutubka cabbirku waa mm)

QAABKA
Tilmaamaha waxaa loogu talagalay tixraac kaliya. Nala soo xidhiidh xogta la habeeyey
Nambarka modelka	Volt lagu qiimeeyay	Wax rar ah malaha		raran				Fadhiid
		Xawaaraha	Hadda	Xawaaraha	Hadda	Torque	Awood	Hadda	Torque
		rpm	mA (max)	rpm	mA (max)	gf.cm	W	mA(min)	gf.cm
FT-12FGMN2000310000-10K	3V	1000	40	770	150	26	0.21	400	110
FT-12FGMN2000315000-30K	3V	500	200	312	450	80	0.26	690	225
FT-12FGMN2000315000-100K	3V	150	50	125	220	180	0.23	900	1050
FT-12FGMN2000316000-150K	3V	106	90	78	280	220	0.18	620	825
FT-12FGMN2000315000-298K	3V	50	80	40	260	505	0.21	700	2060
FT-12FGMN2000320000-1000K	3V	20	160	15	460	2000	0.31	780	5.5
FT-12FGMN204.515000-50K	4.5V	300	40	250	150	60	0.15	440	250
FT-12FGMN204.515000-150K	4.5V	100	40	80	150	200	0.16	420	840
FT-12FGMN204.59000-210K	4.5V	43	35	34	85	215	0.08	180	830
FT-12FGMN2000517000-50K	5V	340	50	285	165	116	0.34	550	548
FT-12FGMN2000515000-100K	5V	150	70	115	170	161	0.19	370	590
FT-12FGMN2000510000-250K	5V	40	35	33	85	360	0.12	210	1410
FT-12FGMN2000615500-50K	6V	310	60	230	180	110	0.26	400	380
FT-12FGMN2000615500-100K	6V	155	30	140	100	150	0.22	400	920
FT-12FGMN2000610000-250K	6V	40	45	30	100	370	0.11	150	1100
FT-12FGMN2000620000-298K	6V	67	80	55	230	585	0.33	630	2480
FT-12FGMN2000610400-1000K	6V	10	50	7	110	1400	0.1	130	3900
FT-12FGMN2001220000-50K	12V	400	35	310	120	110	0.35	300	480
FT-12FGMN2001225500-100K	12V	255	40	205	150	300	0.63	650	1500
FT-12FGMN2001220000-150K	12V	133	50	108	160	330	0.37	300	1300
FT-12FGMN2001220000-250K	12V	80	45	69	110	450	0.32	280	2080
FT-12FGMN2001220000-298K	12V	67	40	55	120	670	0.38	300	3000
Xusuusin: 1 gf.cm≈0.098 mN.m≈0.014 oz.in 1 mm≈0.039 in

Video

Codsiga

Robot: Matoorka labajibbaaran waxaa loo isticmaali karaa habka wadajirka ama wadista robot-ka si loo helo awood wareeg ah oo deggan oo loo xakameeyo dhaqdhaqaaqa iyo xawaaraha robotka.

Qalabka Automation-ka: Matoorada labajibbaaran ayaa si weyn loogu isticmaalaa qalab kala duwan oo otomaatig ah, sida albaabbada otomaatiga ah, makiinadaha iibka, wiishashka tooska ah, iwm.

Qalabka caafimaadka: matoorada labajibbaaran ayaa loo isticmaali karaa qalabka caafimaadka, sida robots qalliinka, qalabka caafimaadka, iwm, si loo gaaro saxnaanta iyo xasiloonida hawlaha caafimaadka iyadoo la xakameynayo dhaqdhaqaaqa matoorada labajibbaaran.

Marka la soo koobo, codsiga matoorada labajibbaaran waa mid aad u ballaaran, oo daboolaya ku dhawaad dhammaan qaybaha qalabka farsamada iyo farsamada.

Tilmaamahan ayaa go'aamiya xawaaraha wax soo saarka mootada, qulqulka, iyo isticmaalka tamarta. Moodooyinka qaar waxa kale oo laga yaabaa inay bixiyaan astaamo ay ka mid yihiin cod-bixiyayaasha ama biriiga si loo hagaajiyo xakamaynta iyo badbaadada. Matooradani waxay ka helaan codsiyada robotics, qalabka otomaatiga ah, qalabka caafimaadka, hababka baabuurta, iyo in ka badan. Inta badan waxaa loo doortaa cabbirkooda is haysta, adkeysigooda, iyo awoodda ay ku bixiyaan xakamaynta dhaqdhaqaaqa saxda ah oo lagu kalsoonaan karo ee goobaha xaddidan.Guud ahaan, matoorada qalabka DC ee fidsan ayaa ah xal wax ku ool ah oo hufan oo loogu talagalay codsiyada u baahan qulqulka sare iyo xakamaynta saxda ah ee xawaaraha. dhaqdhaqaaq.

Moodeelka Mootada	Voltag lagu qiimeeyay	Wax rar ah malaha		raran				Fadhiid
		Xawaaraha	CuTen	Xawaaraha	Hadda	Wax soo saarka	Torque	Hadda	Targue
	V	(rpm	(mA	(rpm)	(mA)	w	(gcm	(mA)	gcm)
FT-N30	2.5	5300	15	4220	59	0.15	1.6	230	8
FT-N30	4.5	26000	130	23000	600	2.5	5	2200	37
FT-N30	3.3	23000	120	19000	700	2.31	5	2200	24
FT-N30	12	15500	30	12400	75	0.62	4.2	350	18
