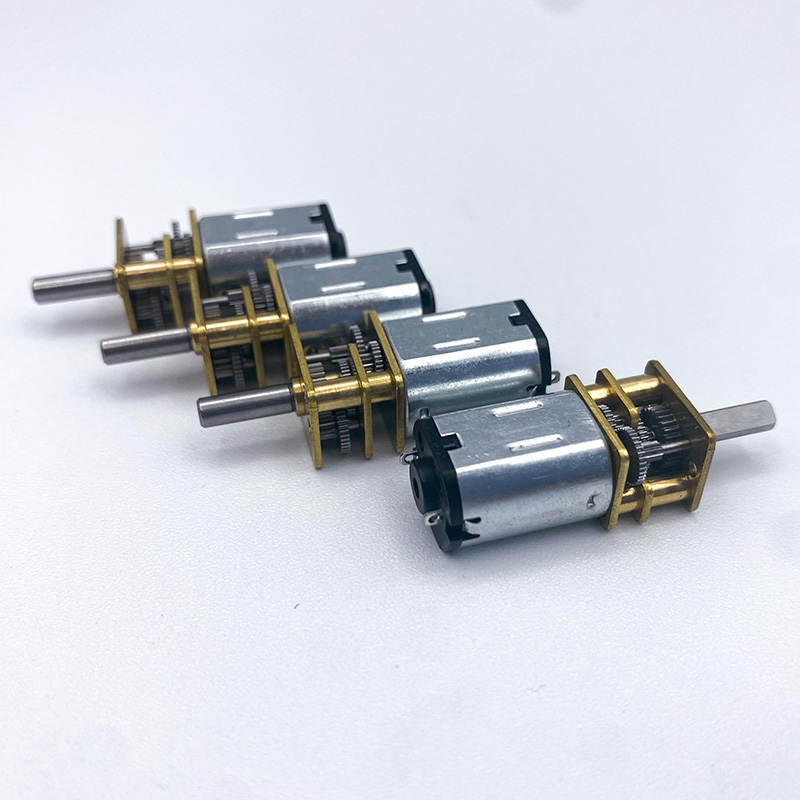

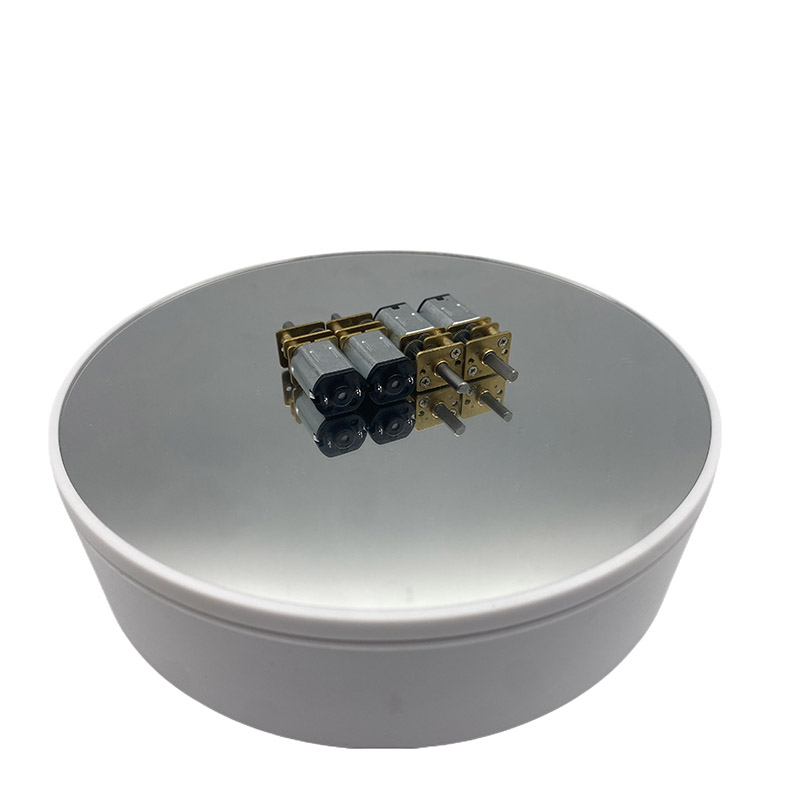

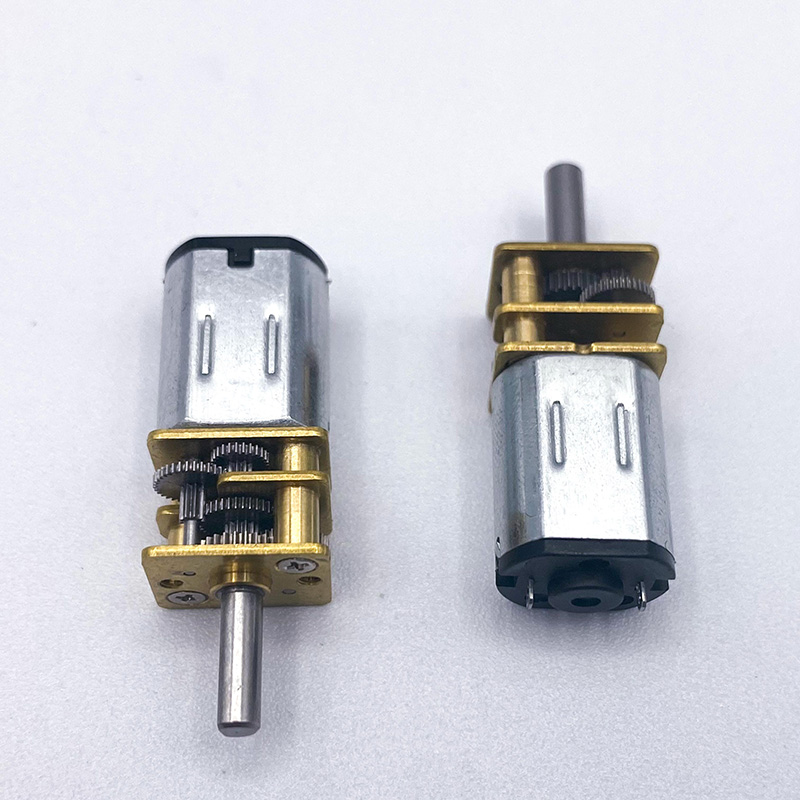

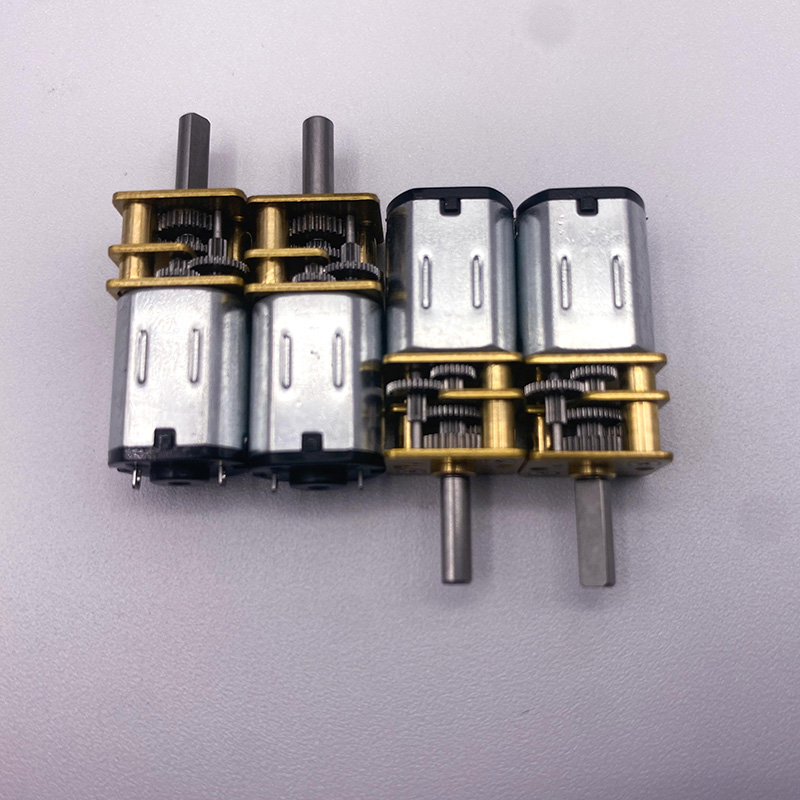

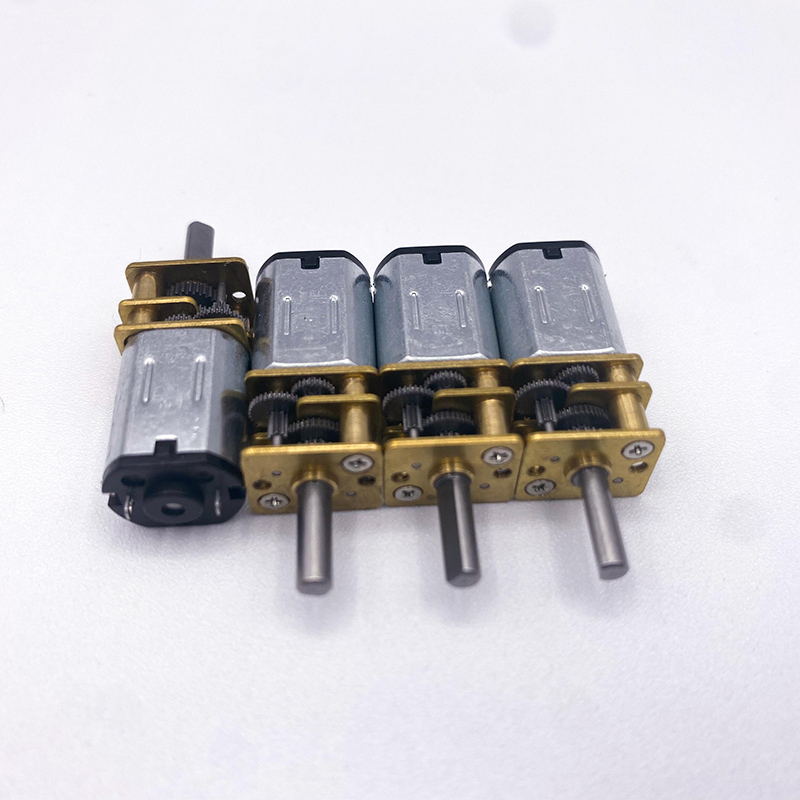

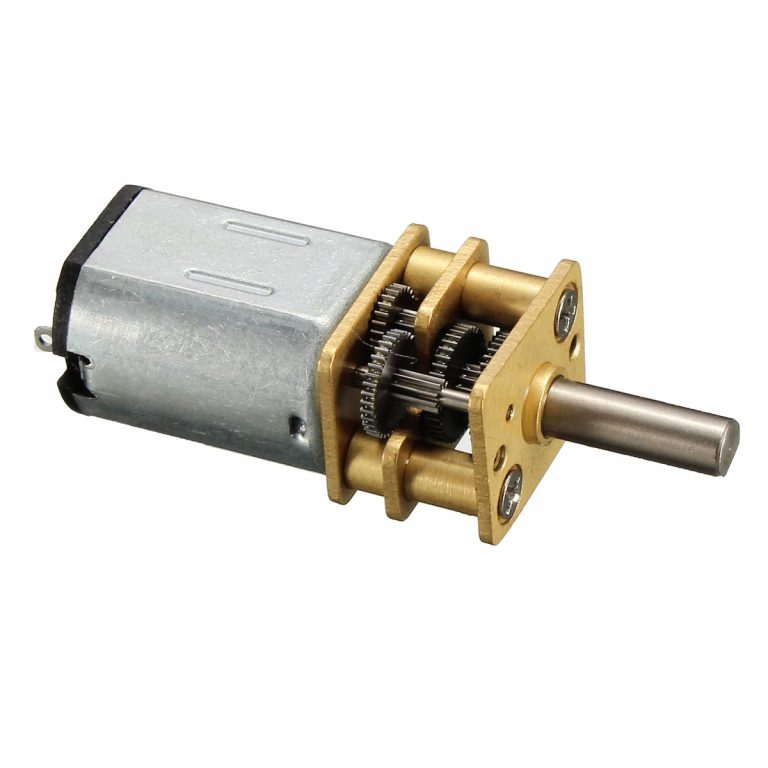

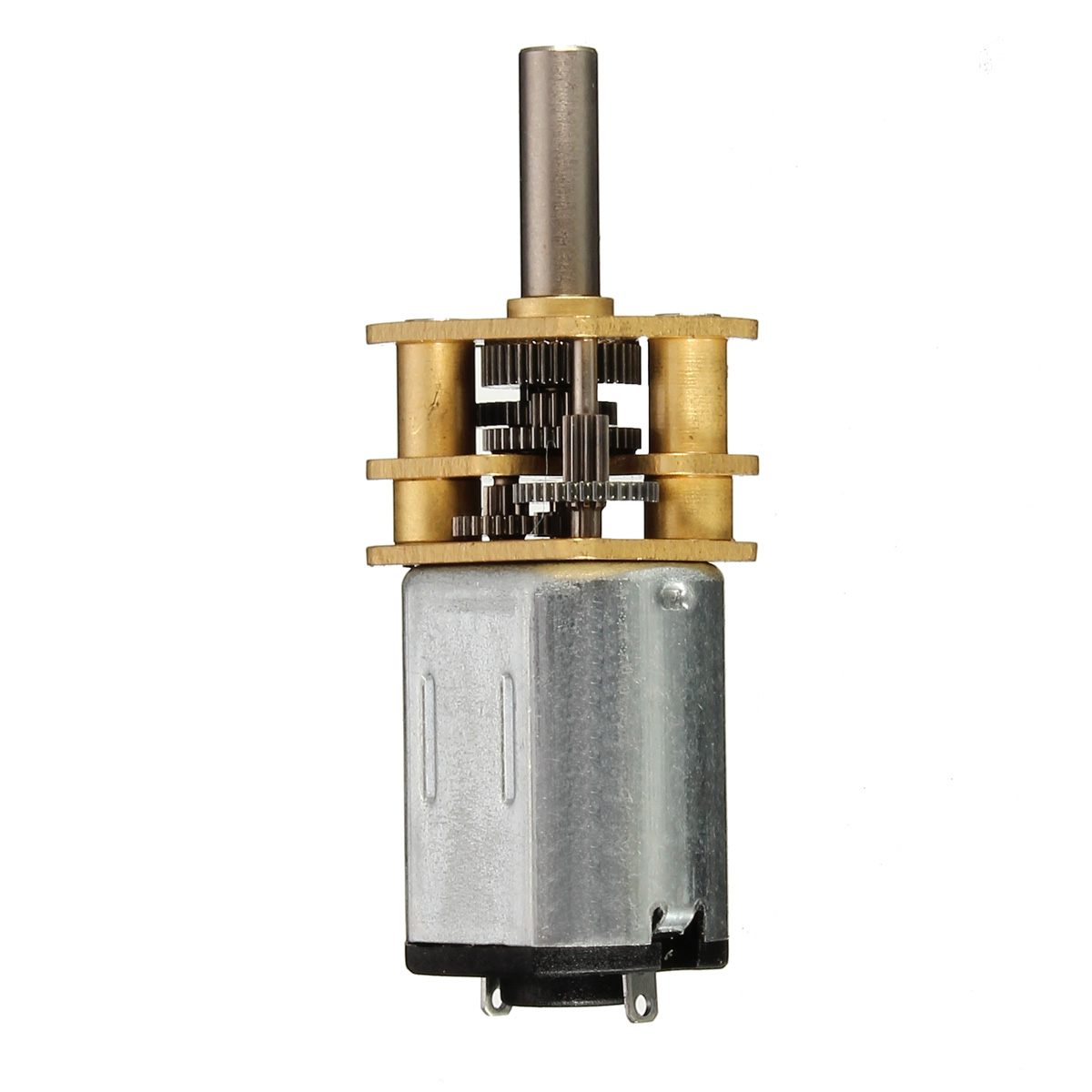

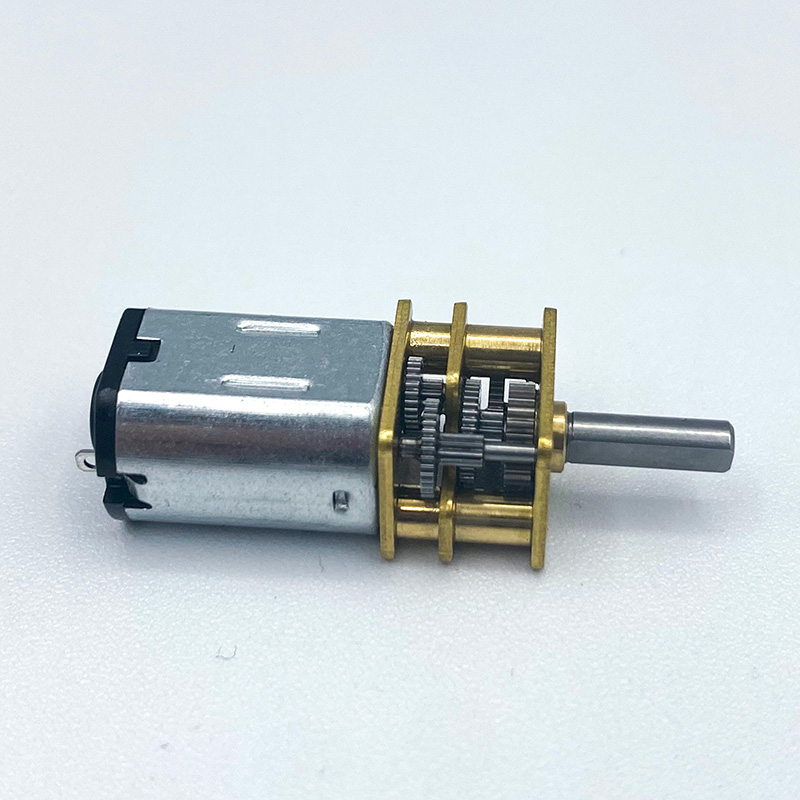

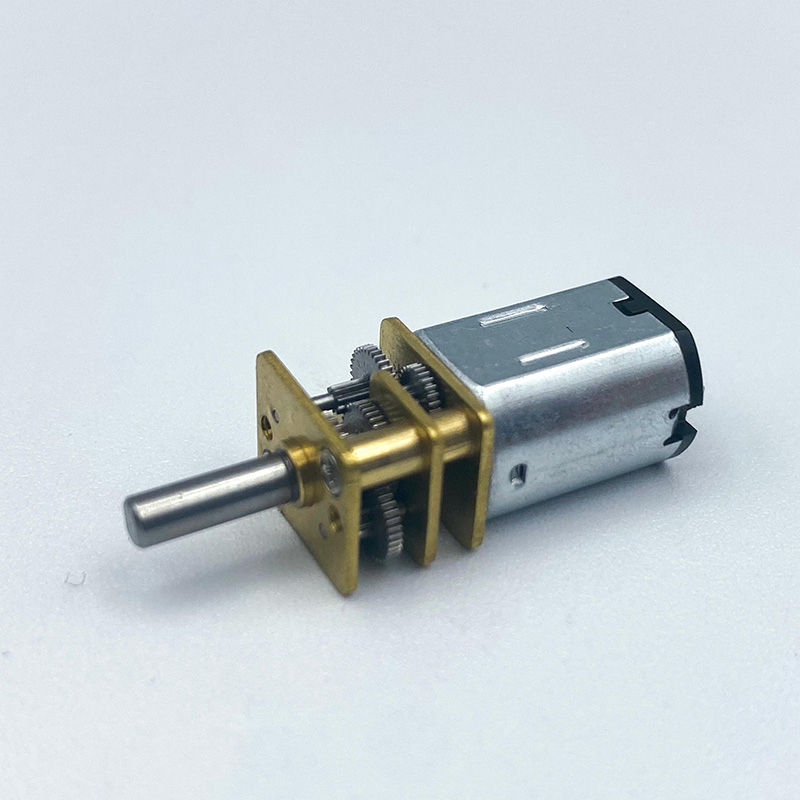

FT-12FGMN20 miniature dc motor 12mm mini gearbox N20 mashiinka burushka loogu talagalay quful samll

FT-12FGMN20 miniature dc motor 12mm mini gearbox N20 mashiinka burushka loogu talagalay qufulka samll Sawirka

sharaxaad gaaban:

Dc Gear Motor Si Balaadhan Loogu Isticmaalay:

Robotyada, Qufulyada elektarooniga ah, Qufulyada baaskiilada dadweynaha, Relays, qoryaha koollada korontada, qalabka guriga, Qalimaanta daabacaadda 3D, burushka cadayga ee korontada, qalabka xafiisyada, daryeelka caafimaadka duugista, qalabka qurxinta iyo jimicsiga, qalabka caafimaadka, alaabta carruurtu ku ciyaarto, waxyaalaha maalinlaha ah ee koronto, curling birta, baabuurta goobaha si toos ah. Alaabta casriga ah, qalabka sirdoonka, sahayda xayawaanka ee caqliga leh (sanduuqa qashinka bisadaha ee caqliga leh, quudiyaha tooska ah), alaabta nadiifinta korontada, qalabka madadaalada, qalabka caafimaadka, qalabka korontada, robots iyo meelo kale oo badan.

Modelka Gear Motor:FT-12FGMN20

Dhexroorka Sanduuqa Gear:12mm

Voltage:2-24V

Xawaaraha:3rpm-2000rpm

Torque:Isbeddelka waa la aqbalay

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

Cabirka (MM)

Xogta Gearbox:

Tirada qalabka	2	3	4	5	7
Saamiga dhimista (K)	10	20,30	50,63,100	150, 210, 250, 298, 360	960,1000
Dhererka sanduuqa gear (mm)	9	9	9	9	12
Torque la qiimeeyay (kg·cm)	0.3	0.4	0.6	1	1
Hirarka joogsiga (kg·cm)	0.9	1.2	1.8	3	3
Waxtarka Gearbxo (%)	81%	73%	65%	59%	48%

Codsiga Xogta Mootada:

Moodeelka Mootada		Wax Xamuul ah		raran				Fadhiid
	Voltage lagu qiimeeyay	Xawaaraha	Hadda	Xawaaraha	Hadda	Wax soo saarka	Torque	Hadda	Torque
	V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-N20	2.4	15800	96	12200	330	0.35	2.8	1150	13
FT-N20	3	12100	45	9390	160	0.2	2.1	540	9.4
FT-N20	6	10400	20	8000	40	0.25	3	150	12
FT-N20	6	15500	35	12400	80	0.52	4	350	18

1. Halbeegyada gawaarida ee kor ku xusan ee tixraaca, fadlan tixraac muunadda dhabta ah.

2, xuduudaha Motor iyo wax soo saarka size usheeda dhexe la beddeli karaa.

3 、 Output torque = matoor wareeg ah * saamiga dhimista * hufnaanta marsho.

Xawaaraha soo-saarka = xawliga ama saamiga dhimista.

QAABKA

Tilmaamaha waxaa loogu talagalay tixraac kaliya. Nala soo xidhiidh xogta la habeeyey

Nambarka modelka	Volt lagu qiimeeyay	Wax rar ah malaha		raran				Fadhiid
		Xawaaraha	Hadda	Xawaaraha	Hadda	Torque	Awood	Hadda	Torque
		rpm	mA (max)	rpm	mA (max)	gf.cm	W	mA(min)	gf.cm
FT-12FGMN2000310000-10K	3V	1000	40	770	150	26	0.21	400	110
FT-12FGMN2000315000-30K	3V	500	200	312	450	80	0.26	690	225
FT-12FGMN2000315000-100K	3V	150	50	125	220	180	0.23	900	1050
FT-12FGMN2000316000-150K	3V	106	90	78	280	220	0.18	620	825
FT-12FGMN2000315000-298K	3V	50	80	40	260	505	0.21	700	2060
FT-12FGMN2000320000-1000K	3V	20	160	15	460	2000	0.31	780	5.5
FT-12FGMN204.515000-50K	4.5V	300	40	250	150	60	0.15	440	250
FT-12FGMN204.515000-150K	4.5V	100	40	80	150	200	0.16	420	840
FT-12FGMN204.59000-210K	4.5V	43	35	34	85	215	0.08	180	830
FT-12FGMN2000517000-50K	5V	340	50	285	165	116	0.34	550	548
FT-12FGMN2000515000-100K	5V	150	70	115	170	161	0.19	370	590
FT-12FGMN2000510000-250K	5V	40	35	33	85	360	0.12	210	1410
FT-12FGMN2000615500-50K	6V	310	60	230	180	110	0.26	400	380
FT-12FGMN2000615500-100K	6V	155	30	140	100	150	0.22	400	920
FT-12FGMN2000610000-250K	6V	40	45	30	100	370	0.11	150	1100
FT-12FGMN2000620000-298K	6V	67	80	55	230	585	0.33	630	2480
FT-12FGMN2000610400-1000K	6V	10	50	7	110	1400	0.1	130	3900
FT-12FGMN2001220000-50K	12V	400	35	310	120	110	0.35	300	480
FT-12FGMN2001225500-100K	12V	255	40	205	150	300	0.63	650	1500
FT-12FGMN2001220000-150K	12V	133	50	108	160	330	0.37	300	1300
FT-12FGMN2001220000-250K	12V	80	45	69	110	450	0.32	280	2080
FT-12FGMN2001220000-298K	12V	67	40	55	120	670	0.38	300	3000
Xusuusin: 1 gf.cm≈0.098 mN.m≈0.014 oz.in 1 mm≈0.039 in
