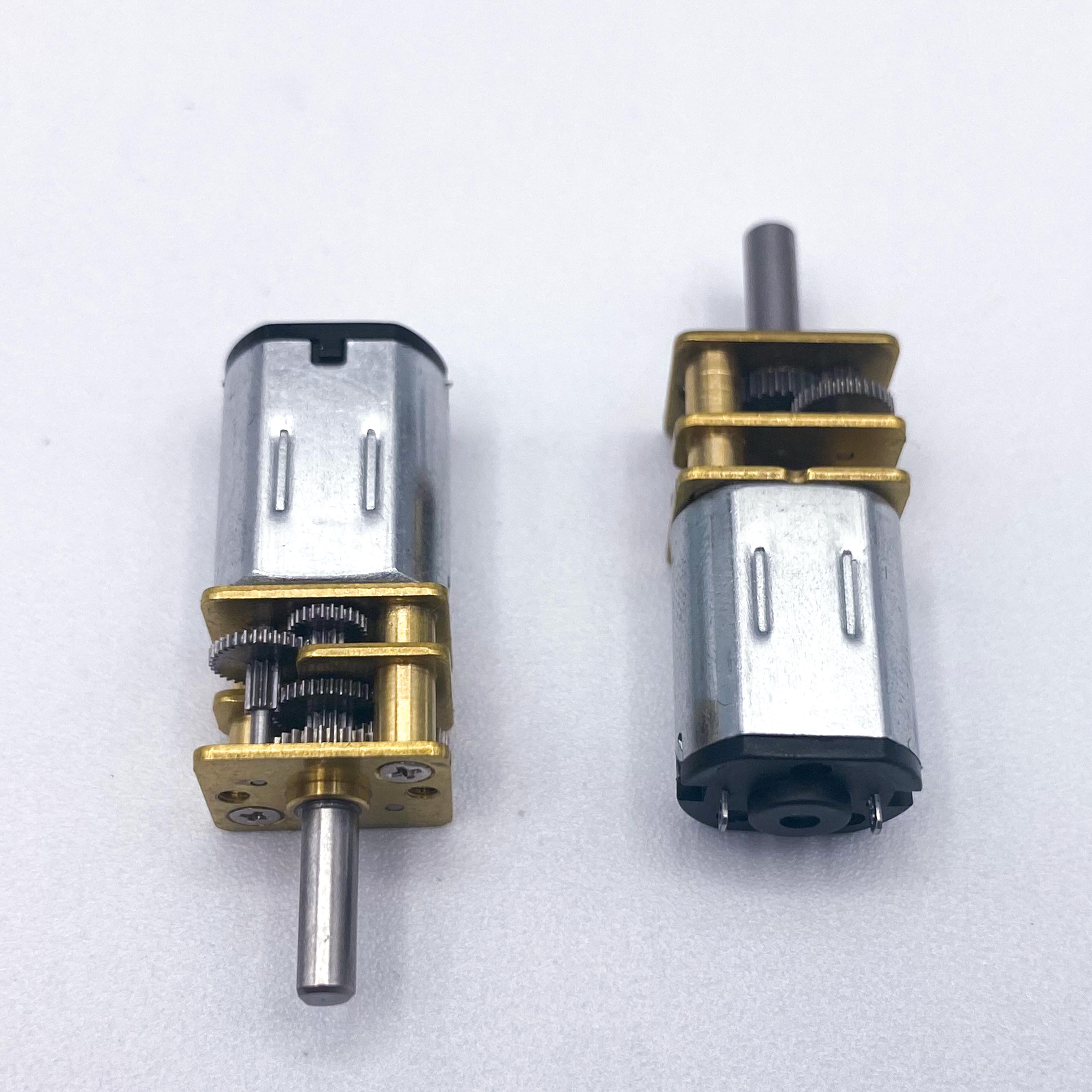

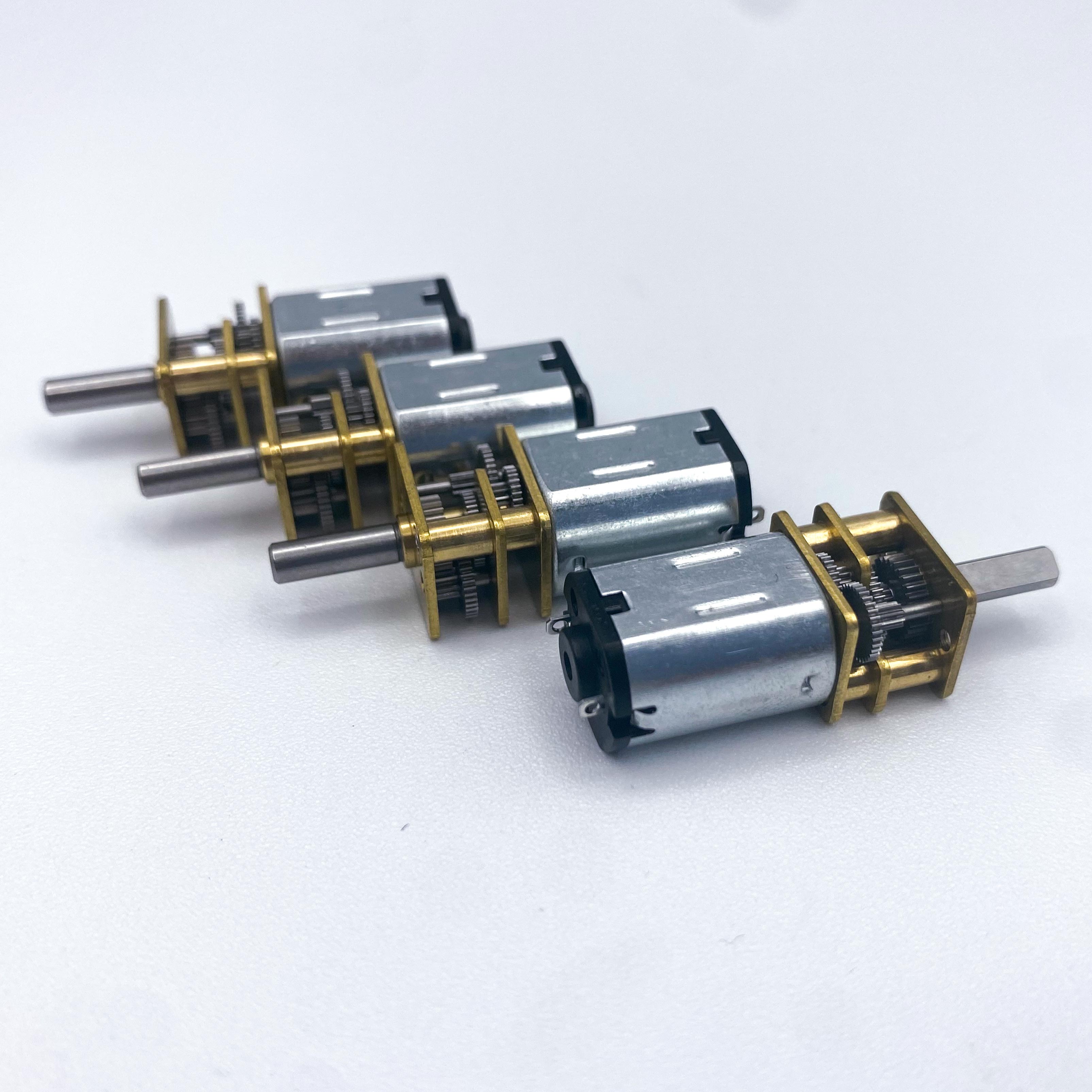

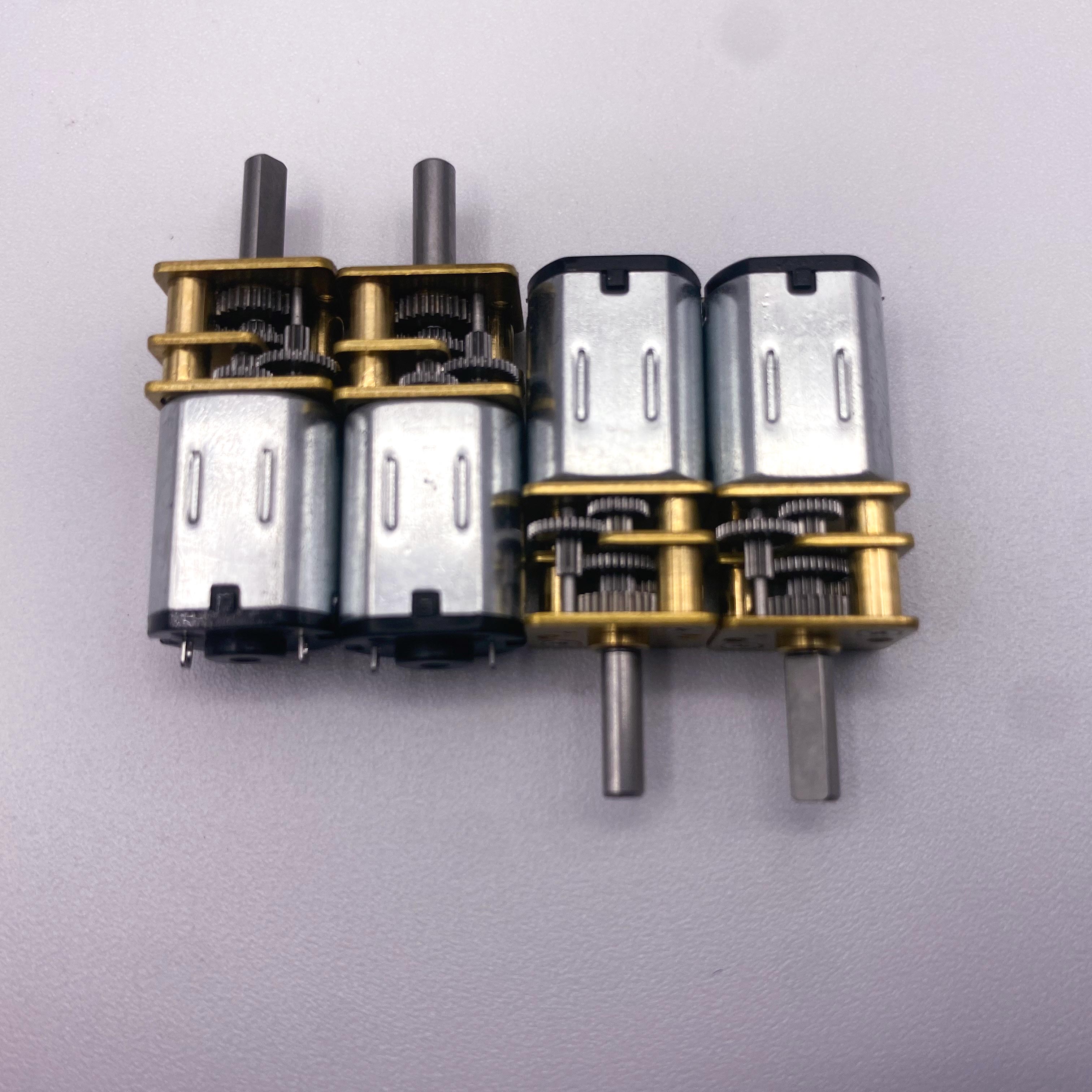

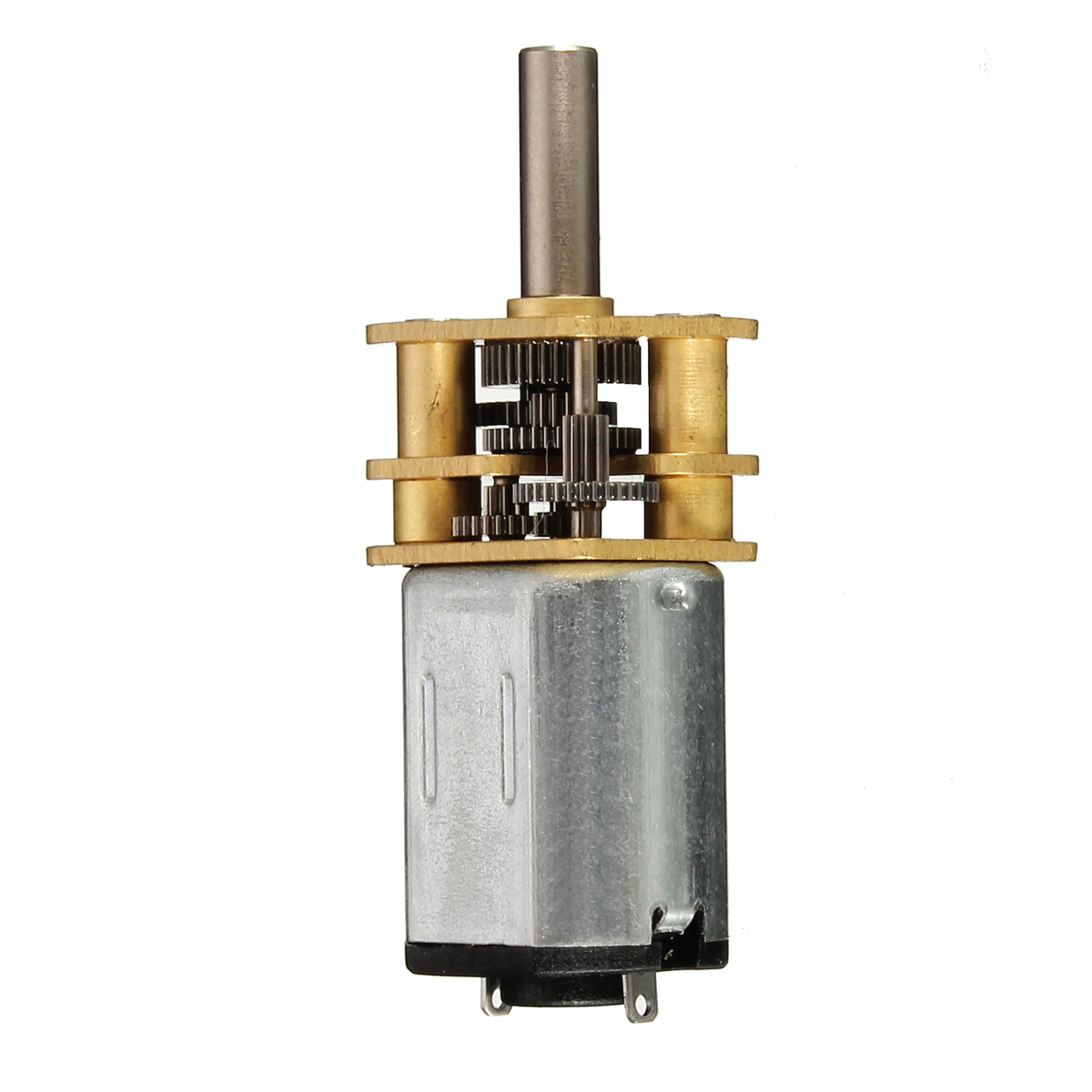

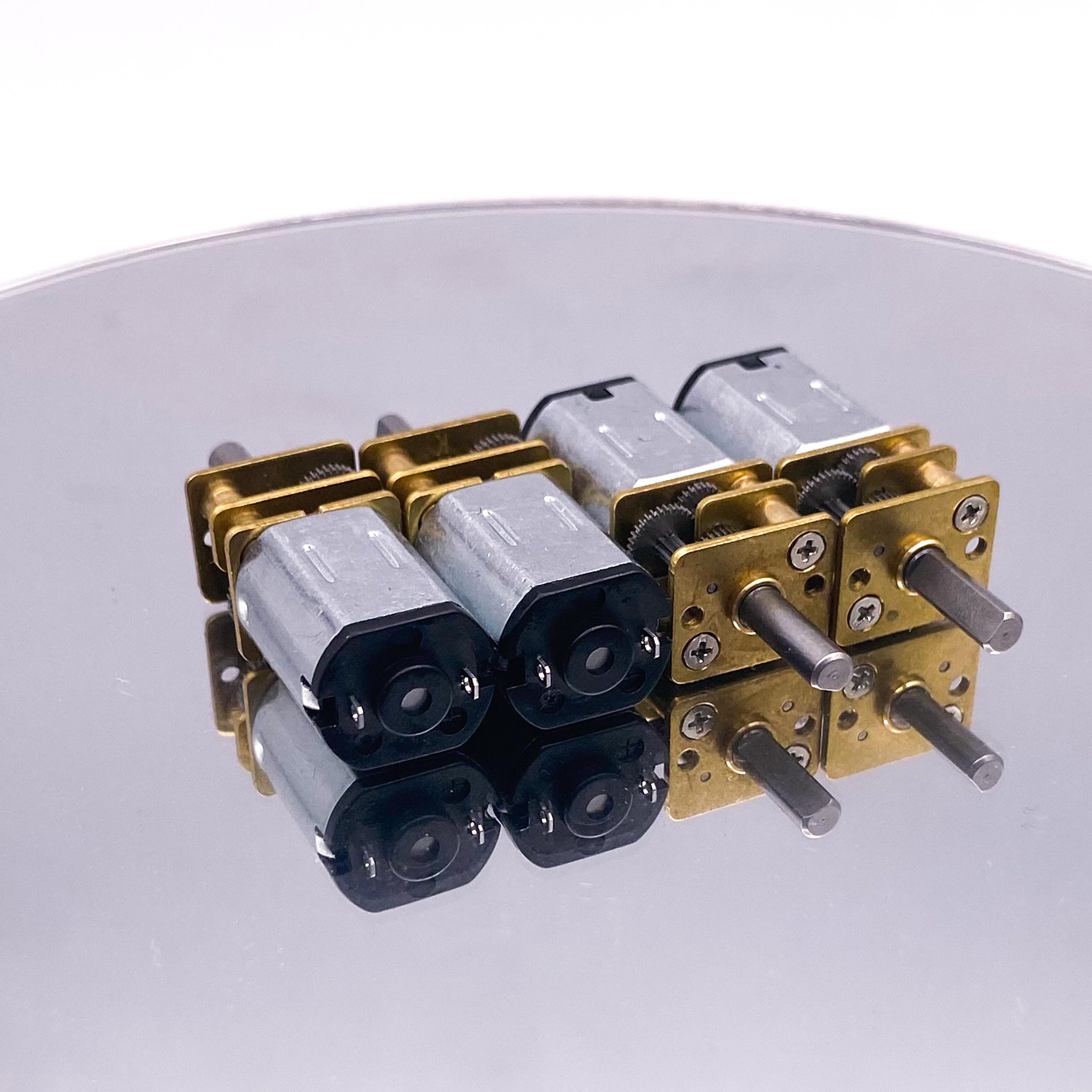

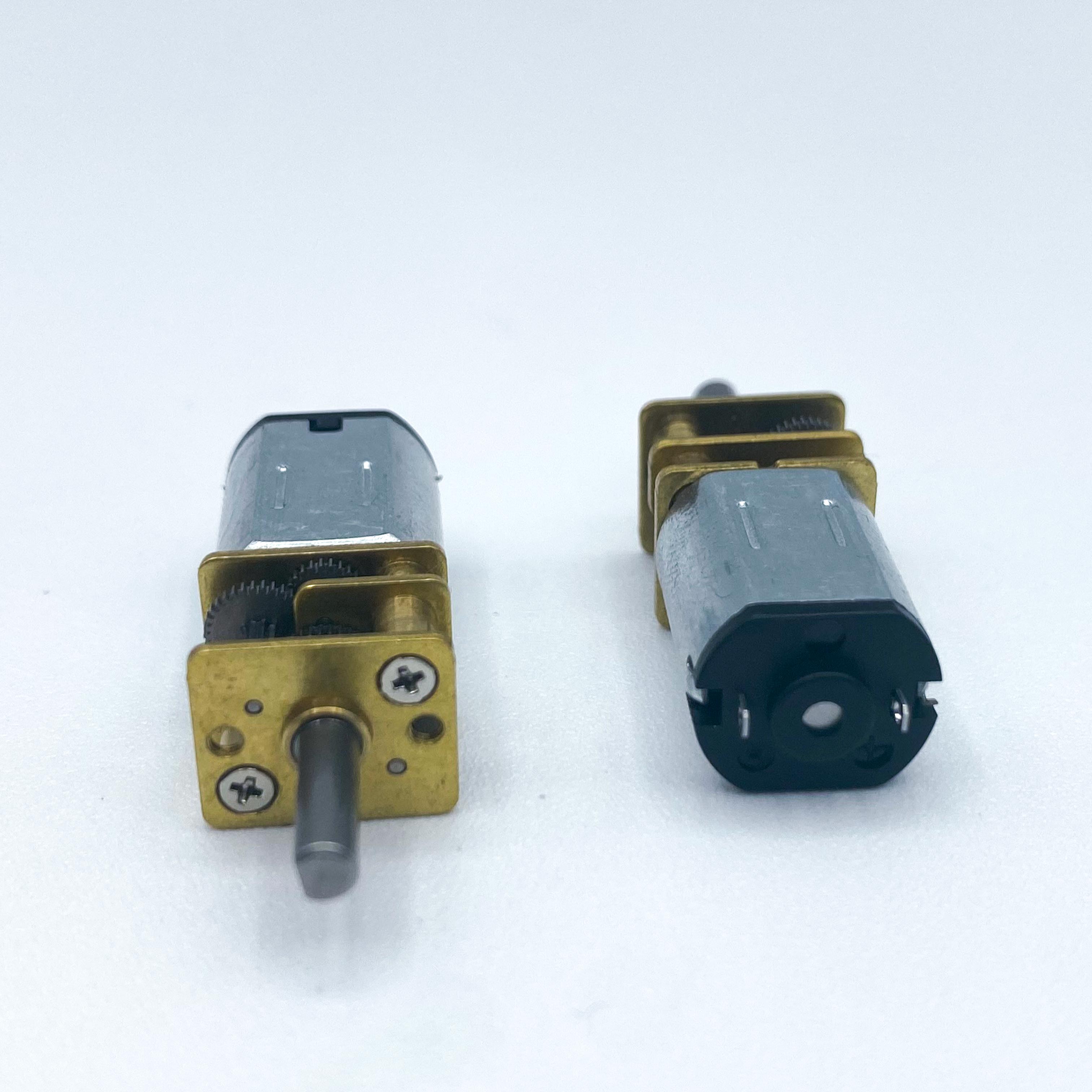

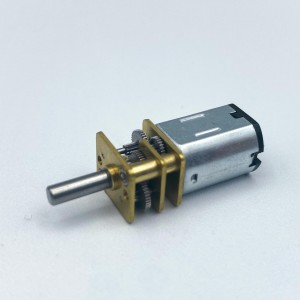

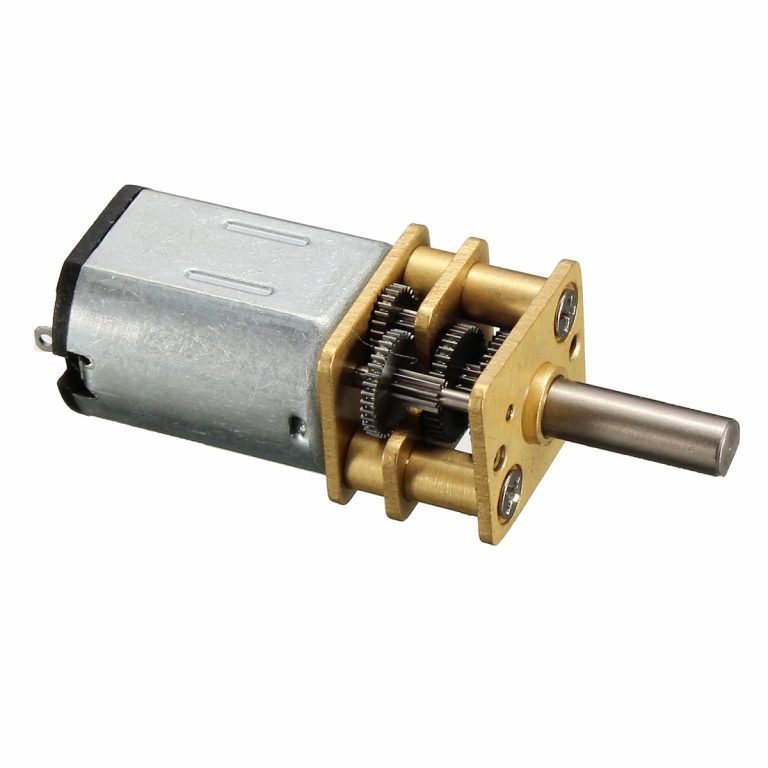

FT-12FGMN20 12mm mini flat DC Gear Motors

sharaxaad gaaban:

Voltage, rpm, torque iyo usheeda dhexe ee wax soo saarka

waxaa lagu habeyn karaa iyadoo loo eegayo shuruudaha alaabtaada

fadlan si naxariis leh ula xidhiidh injineer iibka

Modelka Gear Motor ::FT-12FGMN20

Dhexroorka Sanduuqa Gear ::12mm

Voltage:2 ~ 24V

Xawaaraha:2rpm ~ 2000rpm

Torque::Isbeddelka waa la aqbalay

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

Sharaxaada Alaabta

Matoorada qalabka DC ee fidsanTixraac matoorada is haysta ee leh qaab fidsan iyo sanduuqyo marsho oo isku dhafan. Matooradan waxaa caadi ahaan loo isticmaalaa codsiyo kala duwan oo u baahan xakamaynta saxda ah ee xawaaraha iyo torque.Thematoorada gear DC flatinta badan waxay ka kooban tahay matoor DC ah iyo sanduuqa gearbox oo la isku daray hal unug. Matoorka DC wuxuu bixiyaa awoodda, halka sanduuqa gearku uu u oggolaanaya dhimista xawaaraha iyo isku dhufashada qulqulka. Qaabayntani waxay ka dhigaysaa matoorada ku habboon codsiyada u baahan qulqulka sare iyo hawlgalka xawaaraha hooseeya.

Cabbirka (cutubka cabbirku waa mm)

QAABKA
Tilmaamaha waxaa loogu talagalay tixraac kaliya. Nala soo xidhiidh xogta la habeeyey
Nambarka modelka	Volt lagu qiimeeyay	Wax rar ah malaha		raran				Fadhiid
		Xawaaraha	Hadda	Xawaaraha	Hadda	Torque	Awood	Hadda	Torque
		rpm	mA (max)	rpm	mA (max)	gf.cm	W	mA(min)	gf.cm
FT-12FGMN2000310000-10K	3V	1000	40	770	150	26	0.21	400	110
FT-12FGMN2000315000-30K	3V	500	200	312	450	80	0.26	690	225
FT-12FGMN2000315000-100K	3V	150	50	125	220	180	0.23	900	1050
FT-12FGMN2000316000-150K	3V	106	90	78	280	220	0.18	620	825
FT-12FGMN2000315000-298K	3V	50	80	40	260	505	0.21	700	2060
FT-12FGMN2000320000-1000K	3V	20	160	15	460	2000	0.31	780	5.5
FT-12FGMN204.515000-50K	4.5V	300	40	250	150	60	0.15	440	250
FT-12FGMN204.515000-150K	4.5V	100	40	80	150	200	0.16	420	840
FT-12FGMN204.59000-210K	4.5V	43	35	34	85	215	0.08	180	830
FT-12FGMN2000517000-50K	5V	340	50	285	165	116	0.34	550	548
FT-12FGMN2000515000-100K	5V	150	70	115	170	161	0.19	370	590
FT-12FGMN2000510000-250K	5V	40	35	33	85	360	0.12	210	1410
FT-12FGMN2000615500-50K	6V	310	60	230	180	110	0.26	400	380
FT-12FGMN2000615500-100K	6V	155	30	140	100	150	0.22	400	920
FT-12FGMN2000610000-250K	6V	40	45	30	100	370	0.11	150	1100
FT-12FGMN2000620000-298K	6V	67	80	55	230	585	0.33	630	2480
FT-12FGMN2000610400-1000K	6V	10	50	7	110	1400	0.1	130	3900
FT-12FGMN2001220000-50K	12V	400	35	310	120	110	0.35	300	480
FT-12FGMN2001225500-100K	12V	255	40	205	150	300	0.63	650	1500
FT-12FGMN2001220000-150K	12V	133	50	108	160	330	0.37	300	1300
FT-12FGMN2001220000-250K	12V	80	45	69	110	450	0.32	280	2080
FT-12FGMN2001220000-298K	12V	67	40	55	120	670	0.38	300	3000
Xusuusin: 1 gf.cm≈0.098 mN.m≈0.014 oz.in 1 mm≈0.039 in

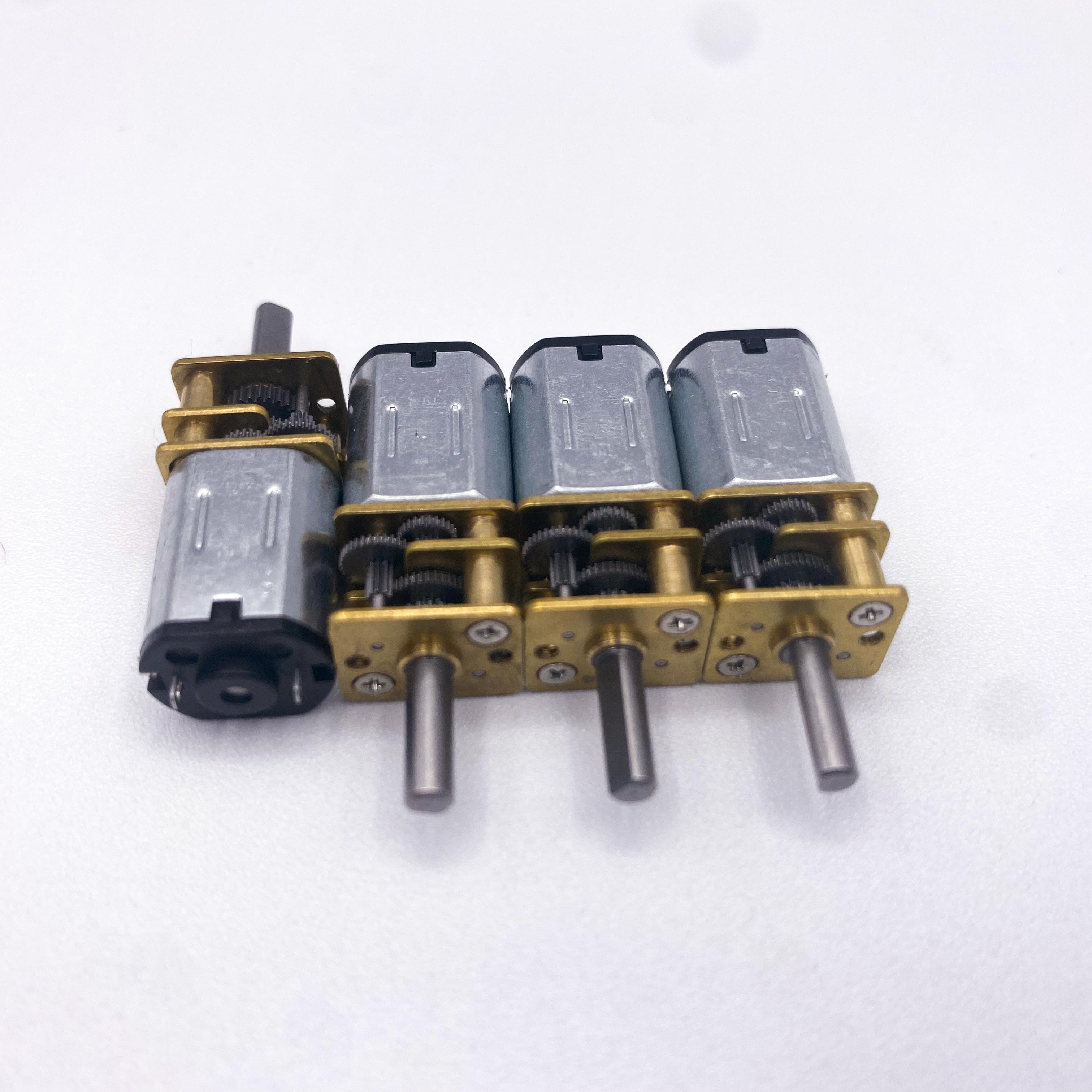

FT-12FGMN20 12mm matoorada qalabka DC ee fidsan (2)

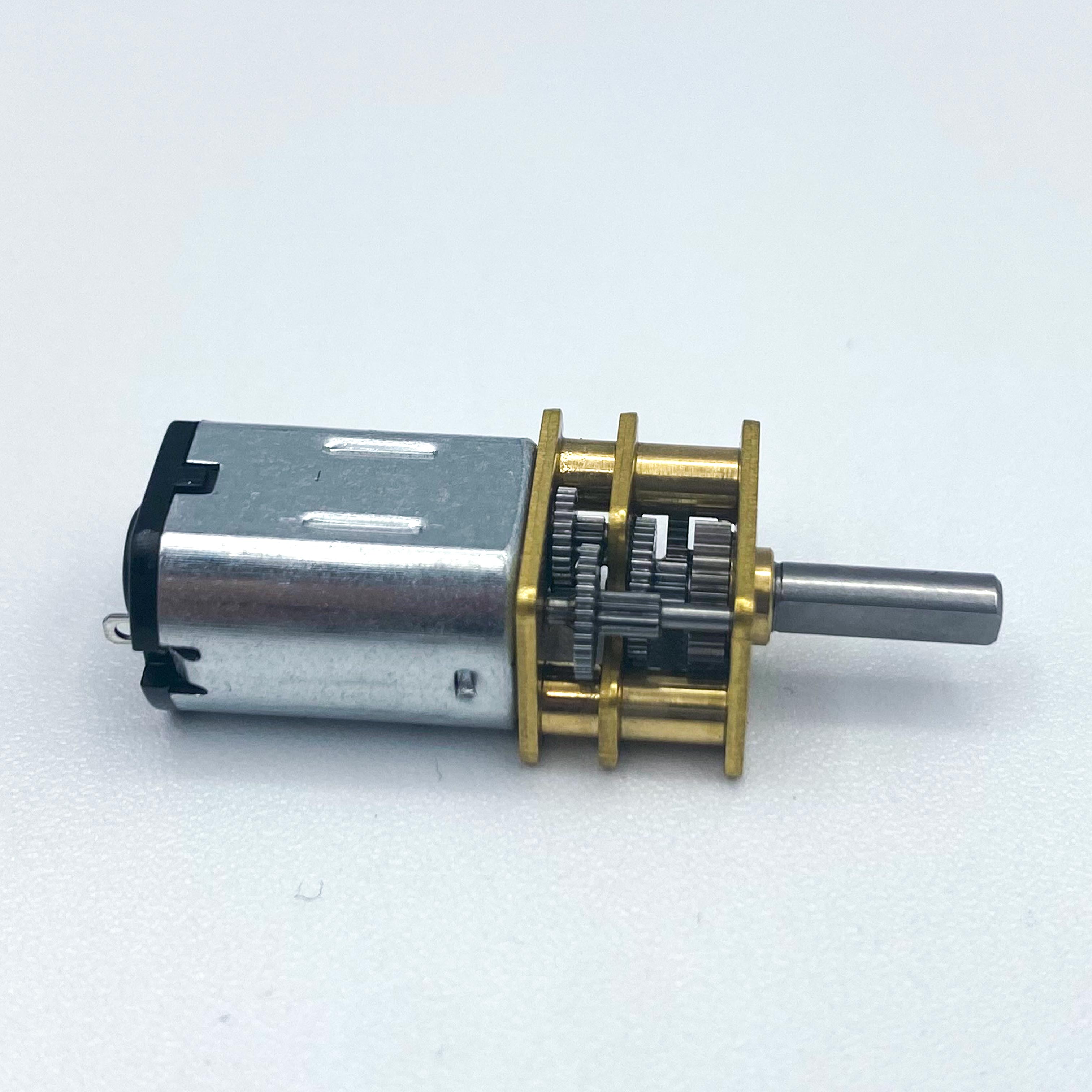

FT-12FGMN20 12mm matoorada qalabka DC ee fidsan (3)

Codsiga

Matoorada fidsan ayaa si weyn loogu isticmaalaa goobta otomatiga warshadaha. Codsiyada caadiga ah qaarkood waxaa ka mid ah:
Qalabka makaanikada:Matoorada labajibbaaran waxaa loo isticmaali karaa qalab kala duwan oo makaanik ah, sida suumanka gudbinta, xadhkaha isku xidhka, qalabka baakadaha, iwm.

Robot:Matoorka labajibbaaran ayaa loo isticmaali karaa habka wadajirka ama wadista robot-ka si loo helo awood wareeg ah oo deggan oo loo xakameeyo dhaqdhaqaaqa iyo xawaaraha robotka.

Qalabka otomaatiga ah:matoorrada labajibbaaran waxaa si weyn loogu isticmaalaa qalab kala duwan oo otomaatig ah, sida albaabbada otomaatiga ah, mashiinnada iibka, wiishashka tooska ah, iwm.

Qalabka caafimaadka:Matoorada labajibbaaran ayaa loo isticmaali karaa qalabka caafimaadka, sida robot-yada qalliinka, qalabka caafimaadka, iwm, si loo gaaro saxnaanta iyo xasilloonida hawlaha caafimaadka iyadoo la xakameynayo dhaqdhaqaaqa matoorada labajibbaaran.

Marka la soo koobo, codsiga matoorada labajibbaaran waa mid aad u ballaaran, oo daboolaya ku dhawaad dhammaan qaybaha qalabka farsamada iyo farsamada.
