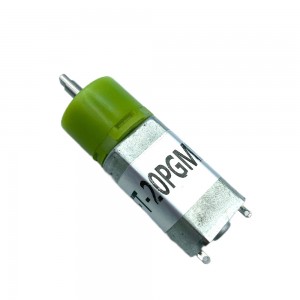

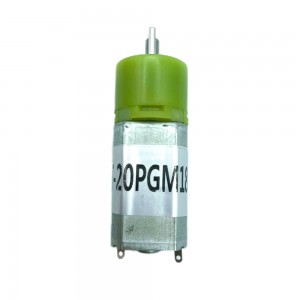

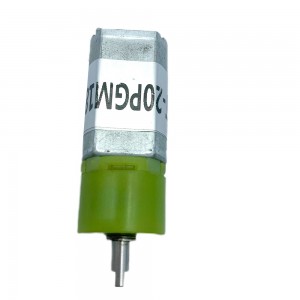

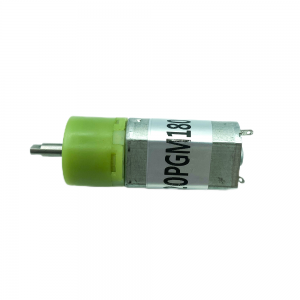

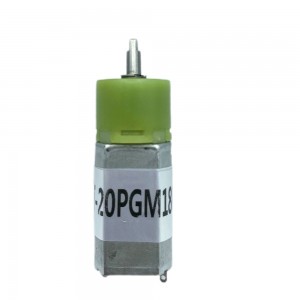

20mm DC 12V 24V balaastiig meeraha geared motor 180 burush matoor
Video

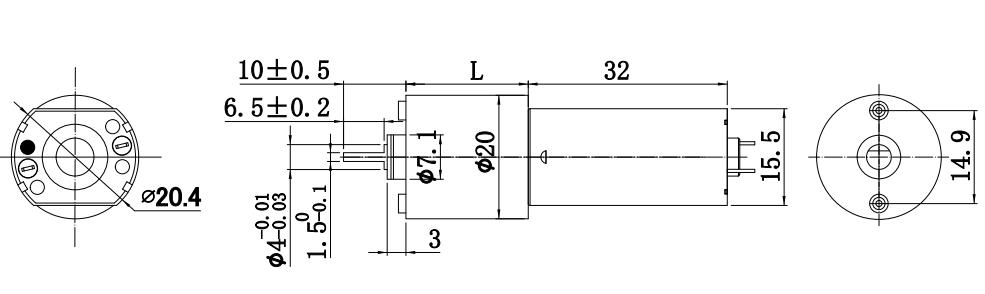

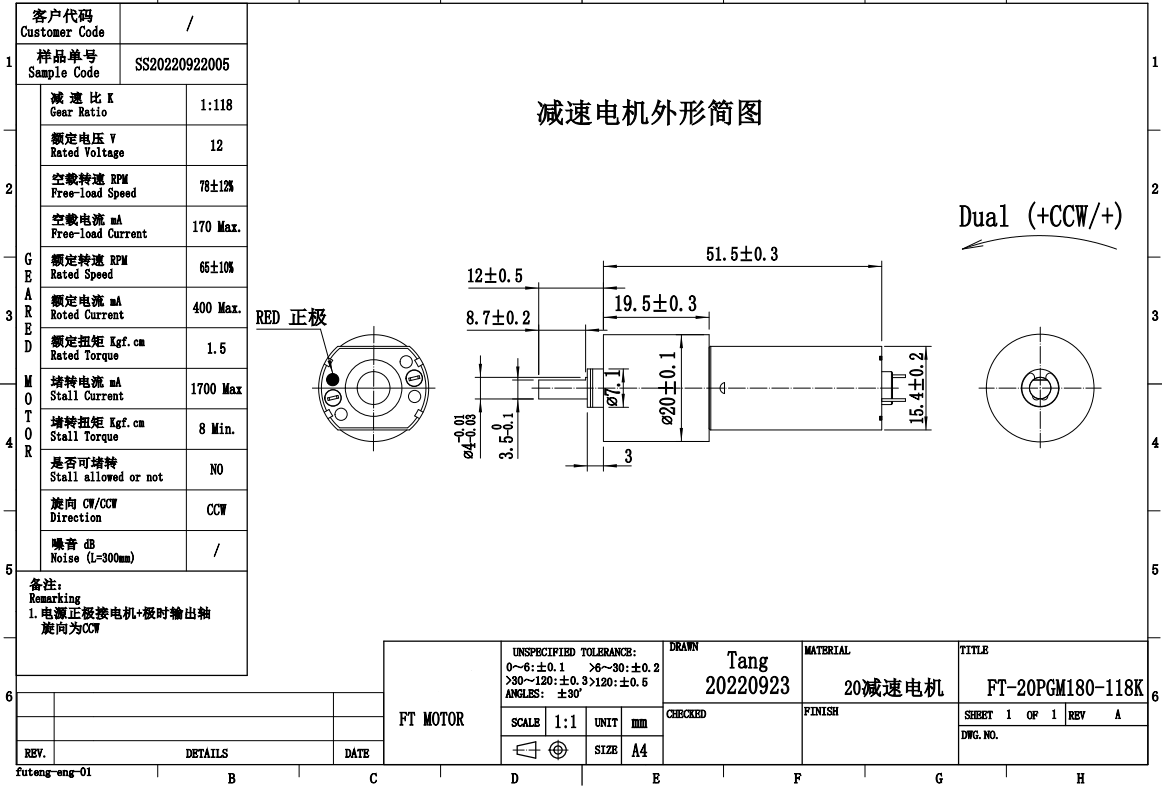

Cabirka (MM)
FT-20PGM180 waa nooc ka mid ahmatoorka qalabka meeraha. Qalabka gearbox waa caag . Waxay leedahay saamaynta yaraynta qaylada. Waxay leedahay dhexroor 20mm ah waxayna leedahay nidaam qalab meere oo is haysta. Nidaamka qalabka meeraha waxa uu ka kooban yahay gears badan oo loo habeeyey habayn gaar ah, oo leh qalab dhexe (qalabka qoraxda) oo ay ku wareegsan yihiin gears yar yar (gears meeraha) kuwaas oo ku wareegaya hareerihiisa. 20PGM180matoorka qalabka meerahawaxaa caadi ahaan loo adeegsadaa warshado iyo codsiyo kala duwan iyadoo ay ugu wacan tahay cabbirkeeda is haysta, qulqulka sare, iyo awoodda xakamaynta dhaqdhaqaaqa saxda ah. Inta badan waxaa loo adeegsadaa robotics-ka, qalabka otomaatiga ah, aaladaha caafimaadka, iyo codsiyada kale ee u baahan gudbin hufan oo la isku halayn karo Nidaamkeeda qalabka meeraha wuxuu bixiyaa saamiga dhimista sare ee xirmada xirmo yar, taasoo keentay kororka wax soo saarka qulqulka iyo hufnaanta sare loo qaaday. Tani waxay ka dhigeysaa mid ku habboon codsiyada culus ee u baahan xakamaynta saxda ah ee xawaaraha iyo qulqulka. Intaa waxaa dheer, 20PGM180 mashiinka meeraha meeraha meeraha wuxuu caadi ahaan leeyahay dib-u-dhac hooseeya, taasoo la macno ah in ay jirto dabacsanaan ama dhaqdhaqaaq yar oo u dhexeeya qalabka, taasoo keentay dhaqdhaqaaq siman oo sax ah. Dabeecaddani waxay muhiim u tahay codsiyada u baahan meelaynta saxda ah, sida mashiinnada CNC iyo hubka robotic. Intaa waxaa dheer, 20PGM180 matoorka qalabka meeraha waxaa loogu talagalay inuu ku shaqeeyo kala duwanaansho koronto oo ballaaran si uu u daboolo ilo koronto oo kala duwan. Waxaa ku shaqayn kara toos toos ah (DC) ama beddelka hadda (AC), iyadoo ku xidhan shuruudaha codsiga. Guud ahaan, 20PGM180matoorka qalabka meerahawaxay siisaa xal cufan oo xoog leh codsiyada warshadaha iyo ganacsiga kala duwan. Isku dhafka cabbirka yar, qulqulka sare, kontoroolka dhaqdhaqaaqa saxda ah, iyo ku habboonaanta ilo kala duwan ayaa ka dhigaya doorasho la taaban karo oo loogu talagalay mashaariic badan oo injineernimo ah.

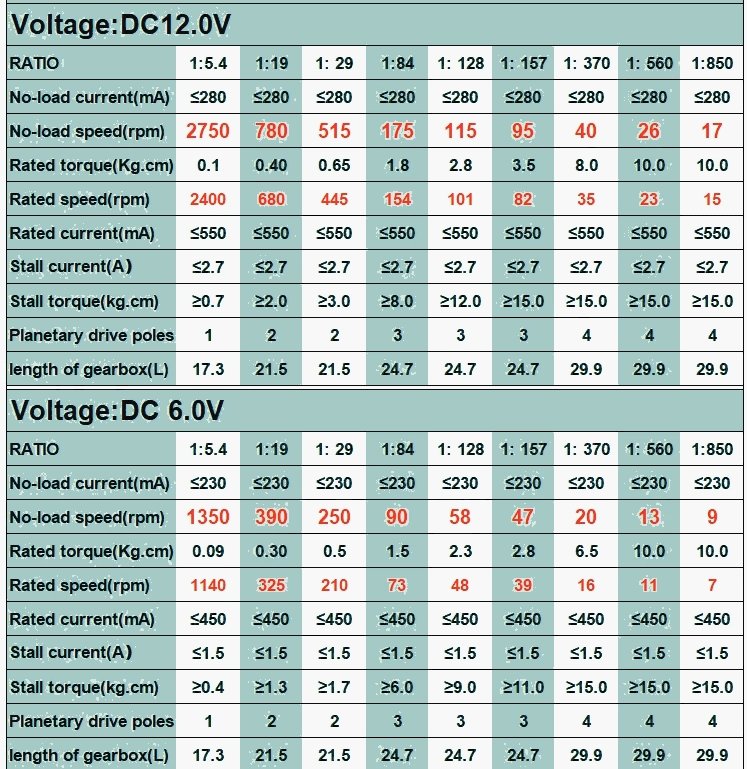

Gearbox Data
| Tirada qalabka | 2 | 3 | ||||||||||
| Saamiga dhimista (K) | 24 | 118,157 | ||||||||||
| Dhererka sanduuqa gear (mm) | 16.1 | 23.7 | ||||||||||
| Torque la qiimeeyay (kg·cm) | 0.6 | 4 | ||||||||||
| Hirarka joogsiga (kg·cm) | 1.5 | 8 | ||||||||||
| Waxtarka Gearbxo (%) | 0.73 | 0.73 | ||||||||||
Xogta Baabuurta
| Moodeelka Mootada | Voltage lagu qiimeeyay | Wax rar ah malaha | raran | fadhiid | ||||||||
| Xawaaraha | Hadda | Xawaaraha | Hadda | Wax soo saarka | Torque | Hadda | Torque | |||||
| V | (rpm) | (mA) | (rpm) | (mA) | (w) | (g·cm) | (mA) | (g·cm) | ||||
| FT-180 | 12 | 12000 | 70 | 10000 | 340 | 2.41 | 23.6 | 1700 | 140 | |||
| FT-180 | 3 | 12900 | 260 | 11000 | 1540 | 2.86 | 25.2 | 9100 | 174 | |||
| FT-180 | 24 | 10200 | 30 | 8600 | 160 | 2.52 | 25.6 | 830 | 160 | |||
| FT-180 | 5 | 5000 | 75 | 4000 | 158 | 0.8 | 19 | 790 | 85 | |||
1. Halbeegyada gawaarida ee kor ku xusan ee tixraaca, fadlan tixraac muunadda dhabta ah.
2, Xuduudaha Motor iyo wax soo saarka size usheeda dhexe la beddeli karaa.
3 、 Output torque = matoor wareeg ah * saamiga dhimista * hufnaanta marsho.
4. Xawaaraha wax soo saarka = xawaaraha mootada / saamiga dhimista.
Codsiga
DC Gear MotorSi Balaadhan Loogu Isticmaalay Aaladaha Guriga Smart, Alaabada Xayawaanka Casriga Ah ,Robots, Quful elektaroonik ah, Quful baaskiilada dadweynaha, Korantada daruuriga ah ee maalinlaha ah, Mashiinka ATM, Qoryaha xabagta korontada, Qalimaan daabacaadda 3D, Qalabka xafiiska Alaabta carruurtu ku ciyaarto, Bir-laabashada, Qalabka otomaatiga ah ee baabuurta.
