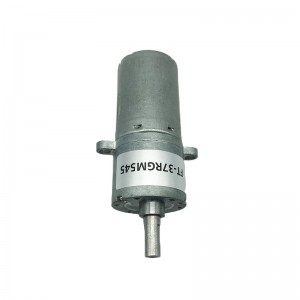

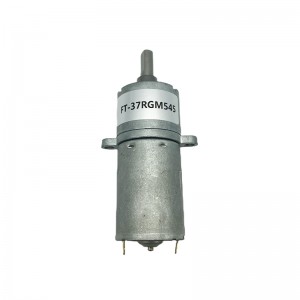

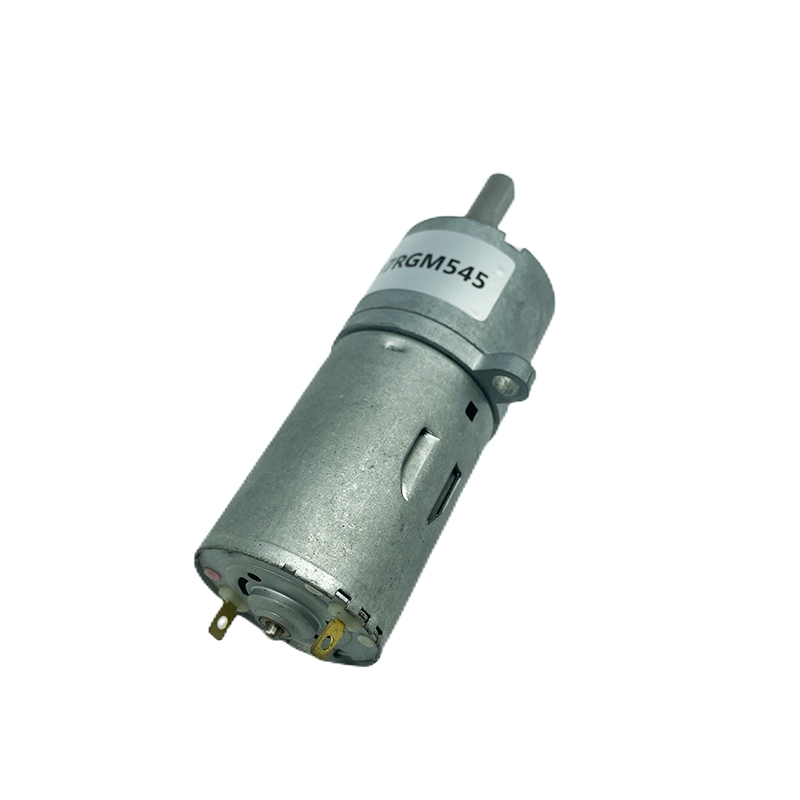

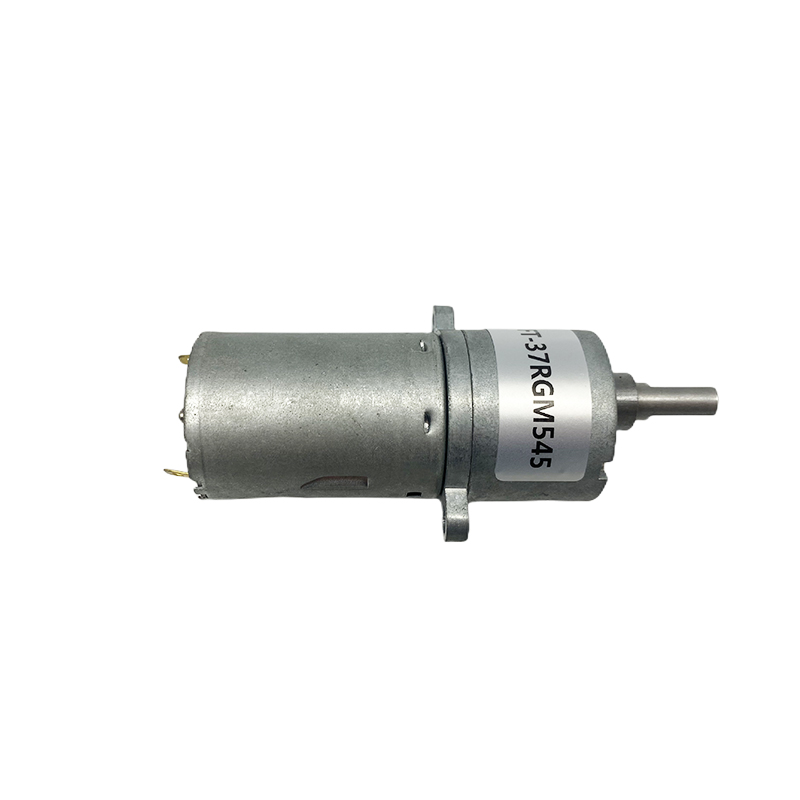

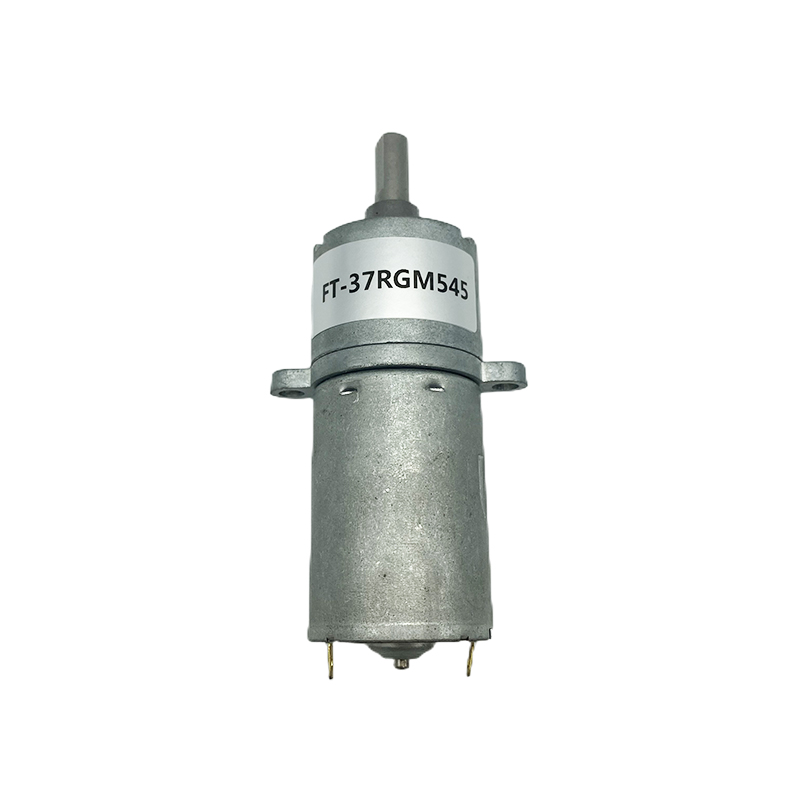

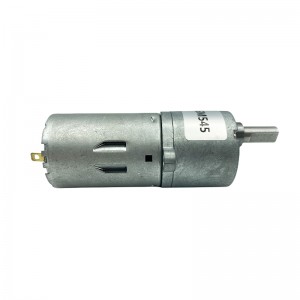

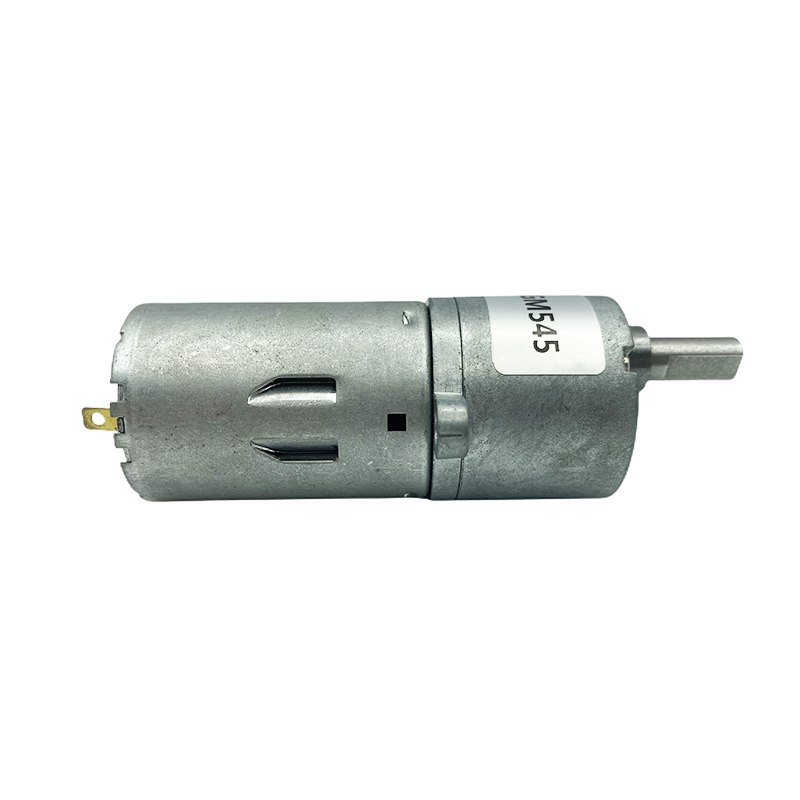

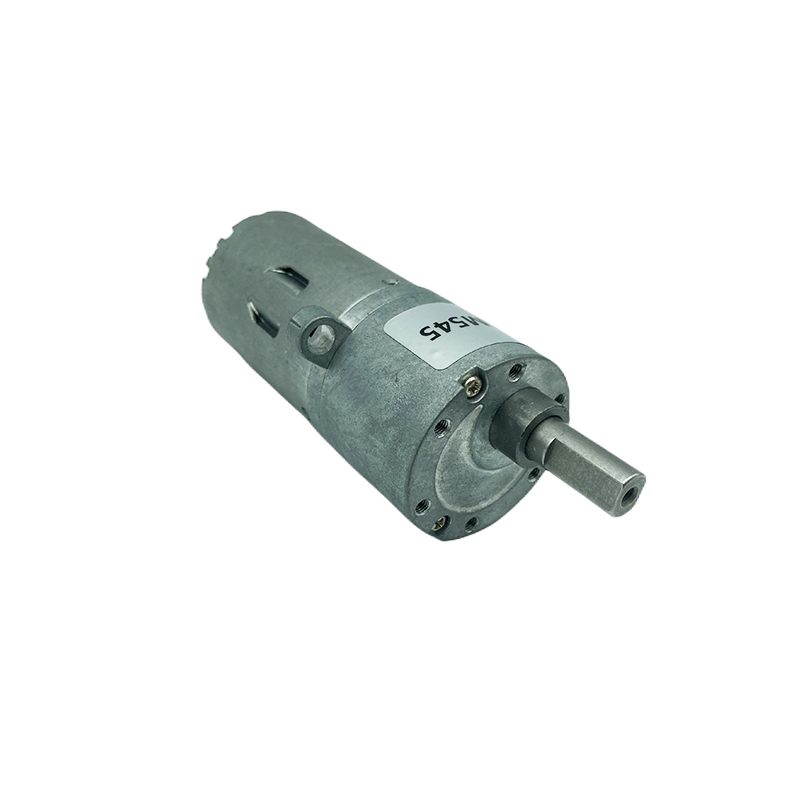

FT-37RGM545 Round Spur gear motor with gear reduction
Features:
At Forto, we are committed to providing high-quality solutions that exceed our customers' expectations. Our 37mm circular spur gearboxes combine cutting-edge technology, reliability and versatility to provide the ideal solution for your motor drive applications.
Gearbox Data:
| Gear series | 2 | 3 | 4 | 5 | 6 | 7 | ||||||
| Reduction ratio（K） | 6.8、10 | 20、30、 40、46 |
61、90 100.103 |
115、138、160、163、184、270、300 | 310、414、552、614 641、810、900 |
932、1243、1657 2430、2700 |
||||||
| Gearbox lengthL(mm) | 16.2 | 19.7 | 22.2 | 24.7 | 27.2 | 29.7 | ||||||
| Rated torque（kg·cm） | 1 | 2 | 5 | 6 | 8 | 10 | ||||||
| Instant torque（kg·cm） | 3 | 6 | 15 | 18 | 24 | 30 | ||||||
| Gearbox efficiency（%） | 81% | 73% | 65% | 59% | 53% | 48% | ||||||
Gearbox Data:
| Motor Model | Rated Voltage | No Load | Load | Stall | ||||||||
| Speed | Current | Speed | Current | Output | Torque | Current | Torque | |||||
| V | （rpm） | （mA） | （rpm） | （mA） | (w) | （g·cm） | （mA） | （g·cm) | ||||
| FT-545 | 12 | 4500 | 250 | 3800 | 810 | 9.7 | 160 | 3700 | 910 | |||
| FT-545 | 12 | 8000 | 550 | 6700 | 3700 | 44.4 | 295 | 11000 | 1500 | |||
| FT-545 | 24 | 4500 | 100 | 3100 | 450 | 10.8 | 230 | 1400 | 730 | |||
| FT-545 | 24 | 6000 | 120 | 4800 | 770 | 18.5 | 170 | 3300 | 770 | |||
Application
Round Spur gear motor has the characteristics of small size, light weight and high transmission efficiency, and is widely used in various micro mechanical equipment. Here are some common application scenarios:
Smart toys: Miniature DC spur gear motors can drive various actions of smart toys, such as turning, swinging, pushing, etc., bringing more diverse and interesting functions to toys.
Robots: The miniaturization and high efficiency of miniature DC spur gear motors make them an important part of the robotics field. It can be used for robot joint actuation, hand motion and walking, etc.
